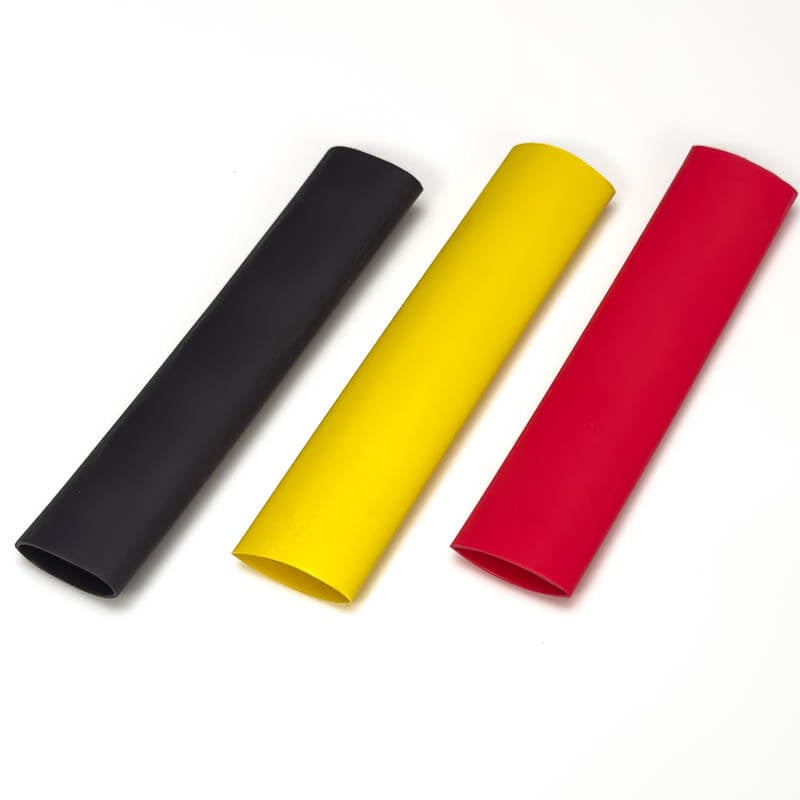

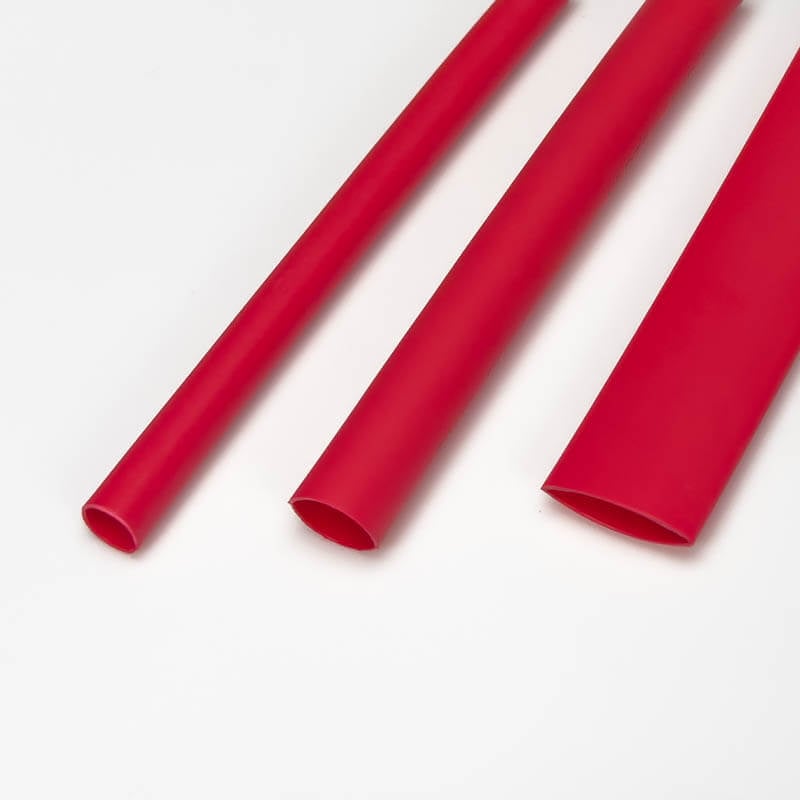

Marine 3:1 Heat Shrink Tubing – Adhesive Lined
Price range: $8.64 through $14.35
- Sold in 4′ lengths
- Dual-wall with waterproof adhesive lining
- Available in red, black, or yellow
- Diameter options: 1/4″, 3/8″, or 1/2″
Fast Shipping
Expert Support
Easy Returns
Product Description
3:1 Marine-Grade Adhesive Heat Shrink Tubing
This premium dual-wall heat shrink tubing delivers superior protection and long-term durability in marine, RV, automotive, and off-grid electrical applications. The 3:1 shrink ratio ensures a tight, secure fit, while the adhesive inner lining creates a strong waterproof seal—perfect for connections exposed to vibration, moisture, and corrosive environments.
Sold in 4-foot lengths. Each unit you order will include one continuous 4′ section. Need more? Add multiple to your cart—tubing is shipped in 4′ increments, not as a continuous roll.
Features
- 3:1 Shrink Ratio: Easily conforms over irregular shapes and larger connectors.
- Adhesive-Lined Dual Wall: Inner glue melts and seals for exceptional moisture protection.
- Marine-Grade Durability: Thick-walled and flame-retardant, ideal for harsh environments.
- Color and Size Options: Available in red, black, or yellow and diameters of 1/4″, 3/8″, and 1/2″.
- High Heat Resistance: Rated for continuous operation at –45°C to 125°C.
Specifications
-
- Shrink Ratio: 3:1
- Operating Temperature: –45°C to 125°C
- Shrink Temperature: Begins at 70°C, fully shrinks by 125°C
- Material: Polyolefin outer with adhesive inner
- Voltage Rating: 600V
- Length: Sold in 4-foot sections
Applications
- Marine and boat wiring splices and terminals
- RV electrical harnesses and repairs
- Off-grid solar, inverter, and battery terminal protection
- Automotive wire insulation and cable reinforcement
Common Sizing Examples
Many customers use the following tubing sizes for these types of wire projects:
| Unshrunk Diameter | Approx. Shrunk ID | Typical Wire Size / Use Case |
|---|---|---|
| 1/4″ (0.250″) | ~0.083″ | AWG 14–16 wires, small terminals or solder joints |
| 3/8″ (0.375″) | ~0.125″ | AWG 10–12 wire, small splices or ring terminals |
| 1/2″ (0.500″) | ~0.167″ | AWG 6–8 cable, battery leads, heavy terminals |
Always measure your wire or connector outer diameter for best fit.
Recommended Accessory
For the best results, pair this product with a 120V Two-Setting Heat Gun by Ancor. It delivers consistent, even heat and makes shrink tube installation faster and more reliable—ideal for shop, garage, or dockside use.
This marine-grade adhesive heat shrink tubing is your go-to solution for rugged, moisture-sealed electrical insulation. Its thick construction, excellent shrink recovery, and secure adhesive seal make it an essential for any marine or mobile electrical install.
