CIT 22MM Black Latching

Product Description

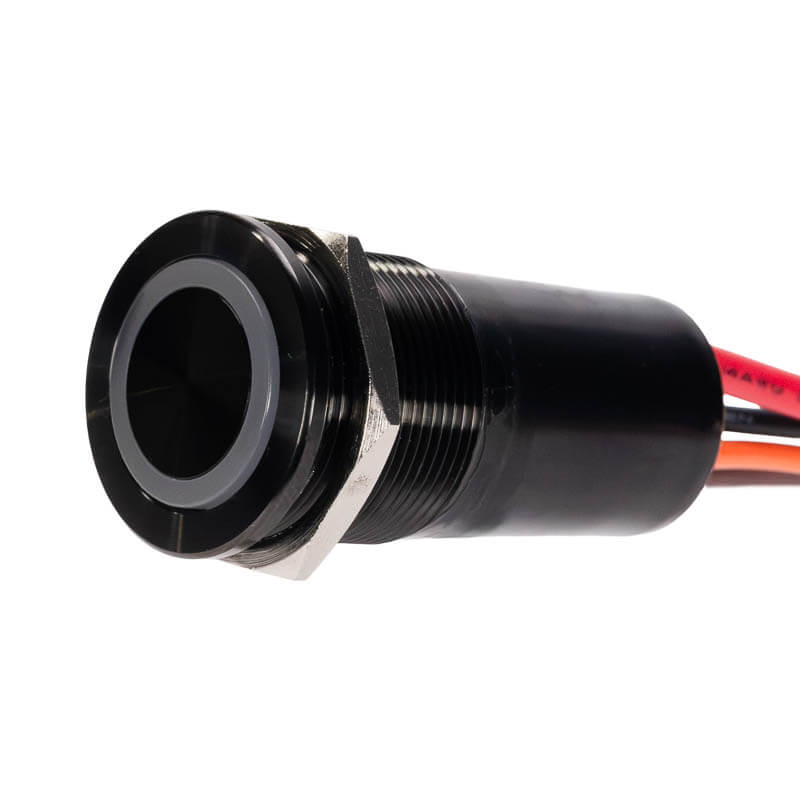

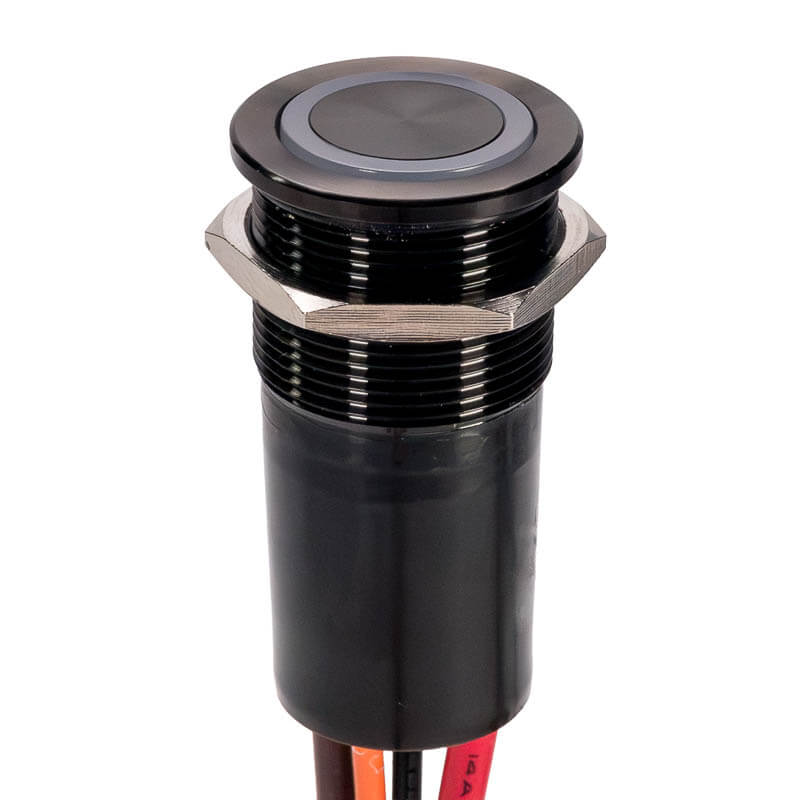

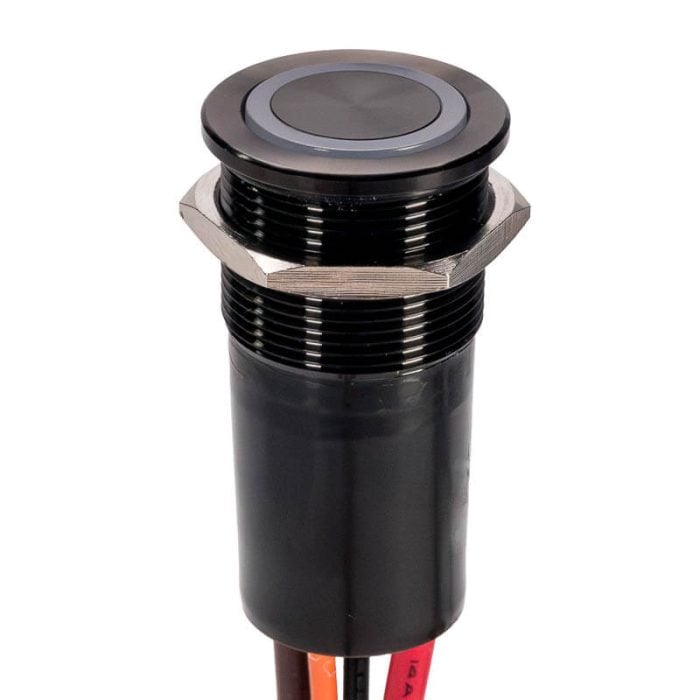

CIT 22mm Black Latching Illuminated Push Button Switch

Built for custom marine switch panels and other demanding 12V/24V installations, the CIT 22mm Black Latching Push Button Switch combines heavy-duty mechanical contacts with a corrosion-resistant black PVD-coated 316L stainless steel body. Its latching action is simple: press once for ON and press again for OFF.

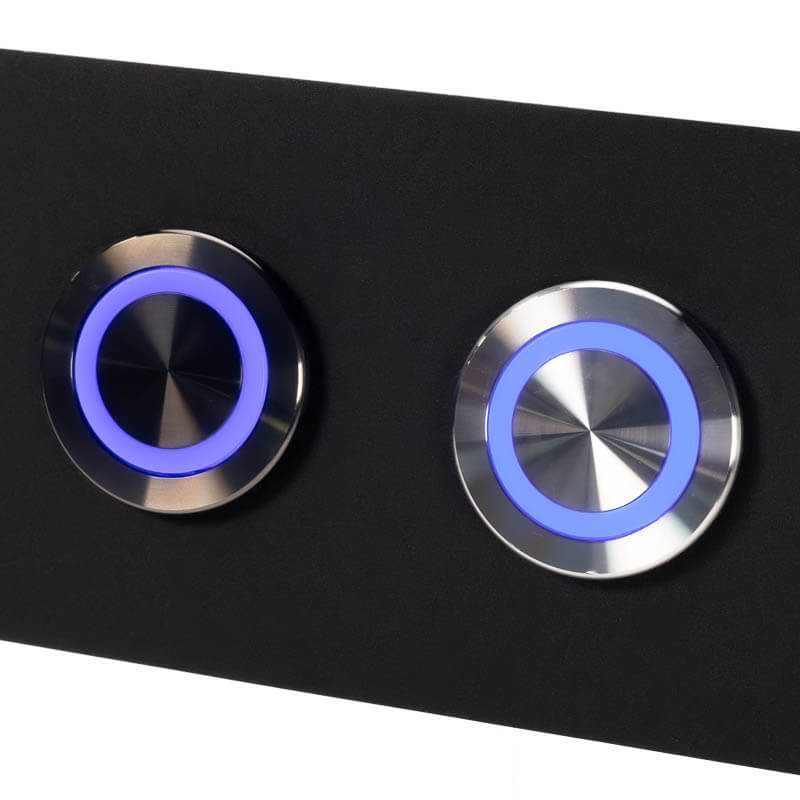

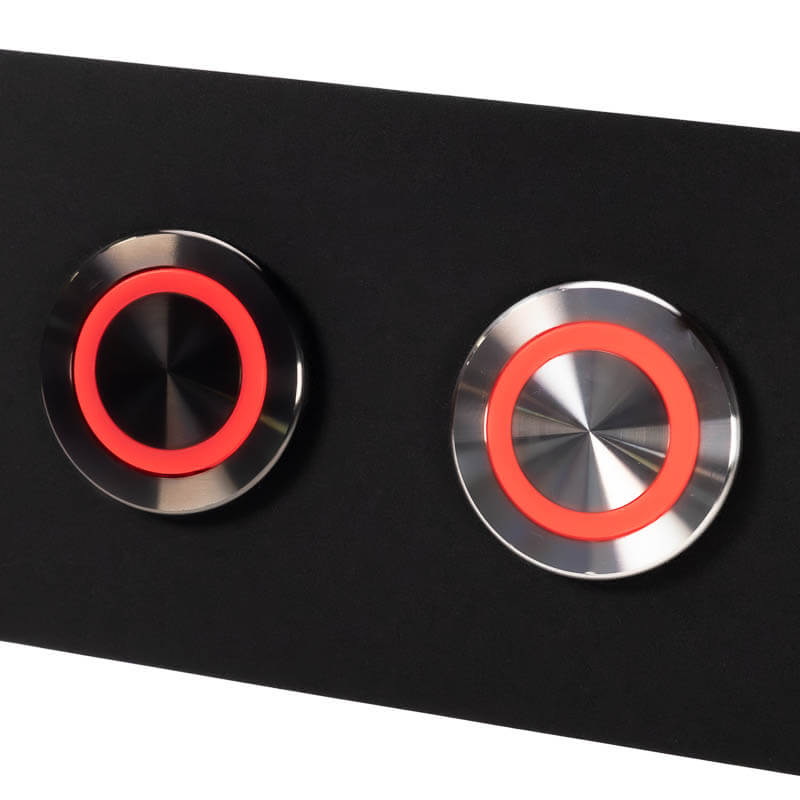

The independent LED ring contains both blue and red emitters, so you can choose the illumination color during installation simply by reversing the polarity of the black and orange LED leads. Because the light is electrically independent from the switch contacts, it can be wired to stay on continuously or, more commonly, to illuminate only when the connected accessory is switched on.

Marine-Ready Features

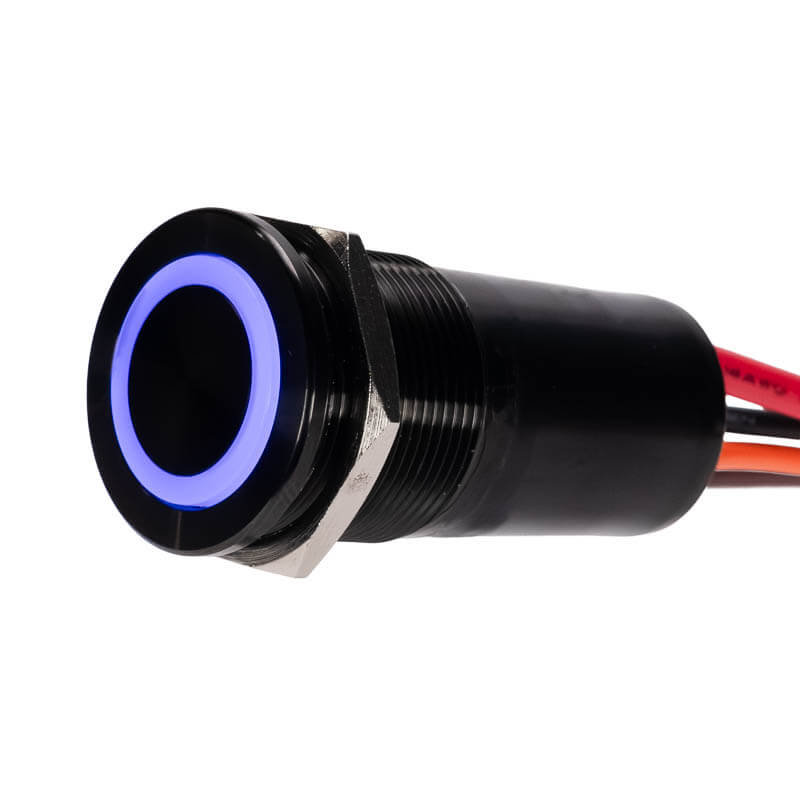

• Dual-Color Blue/Red LED Ring – Select blue or red illumination by reversing polarity on the black and orange LED leads.
• Independent Illumination – Wire the LED to remain on continuously or to indicate when the switched circuit is active.
• Heavy-Duty Mechanical SPST Contacts – No solid-state switching electronics; rated up to 20A at 12VDC.
• Marine-Rated 316L Stainless Construction – Black PVD-coated stainless steel provides excellent corrosion resistance in harsh marine environments.
• UV-Resistant Black Finish – The durable PVD exterior is designed for sun-exposed boat dashboards and outdoor panels.
• IP67 Waterproof Construction – A sealed, potted rear protects the switch in wet, dusty, and high-humidity environments.
• 1 ft Flying Leads – Prewired leads simplify installation and eliminate small terminal connections behind the panel.
• Panel-Sealing O-Ring Included – Helps keep water from passing through the 22mm panel opening.
• Latching Operation – Push once ON; push again OFF.

Wiring Details

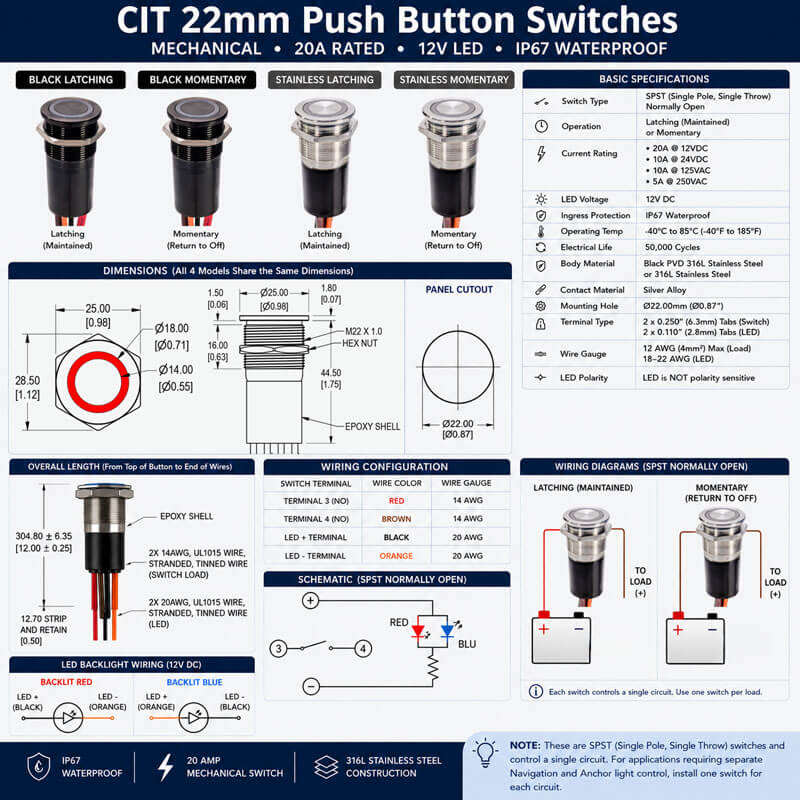

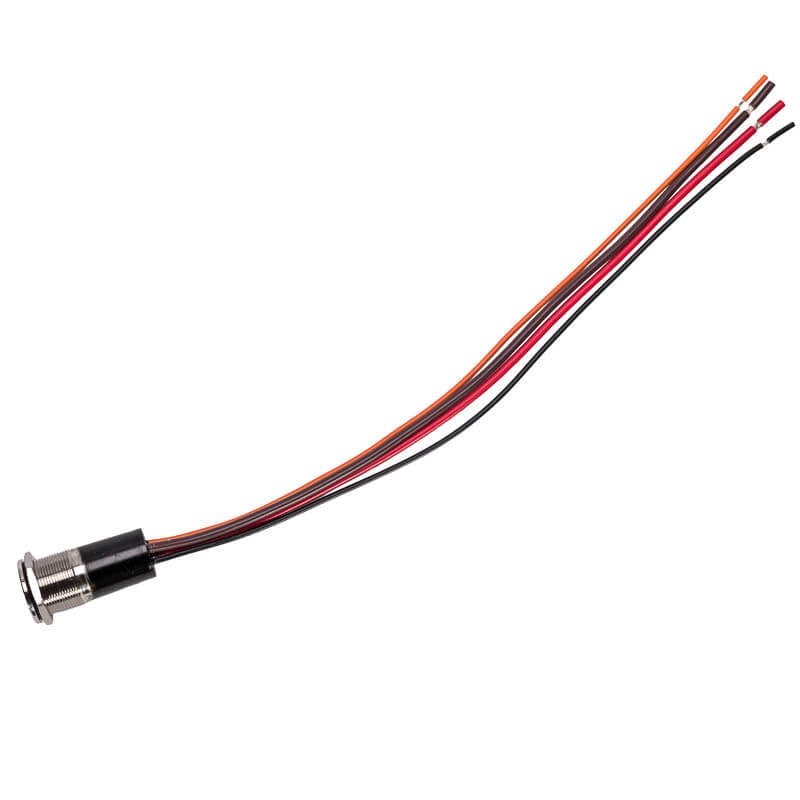

• Brown: Switch power input.
• Red: Switched power output to the accessory or load.
• Black and Orange: Independent LED illumination leads.
• Blue illumination: Connect black to negative and orange to positive.
• Red illumination: Connect orange to negative and black to positive.

Common switched-light wiring: To make the ring illuminate only when the switch is ON, connect the LED lead used as positive for your chosen color to the red switched-output lead—typically by crimping both wires together in the output butt connector—and connect the other LED lead to negative. For an always-on ring, connect the LED positive lead to a constant positive source instead. The LED circuit is independent and does not affect the switch contacts.

Specifications

• Switch Type: SPST, normally open
• Operation: Latching (push ON / push OFF)
• Current Rating: 20A at 12VDC; 10A at 24VDC
• Mounting Cutout: 22mm
• Ingress Protection: IP67 waterproof
• Operating Temperature: -40°C to 85°C
• Electrical Life: 50,000 cycles
• Body Material: Black PVD-coated 316L stainless steel
• Illumination: Independent 12V LED ring; selectable blue or red by reversing black/orange polarity
• Switch Wiring: Brown = input; red = switched output
• LED Wiring: Blue: black negative / orange positive; red: orange negative / black positive
• Lead Style: Potted waterproof rear with 1 ft flying leads
• Panel Seal: Sealing O-ring included

Ideal Applications

• Marine switch panels and boat dashboards
• Navigation, anchor, deck, cabin, and accessory circuits
• RV and off-road electrical systems
• Automotive accessories
• Industrial control panels

What’s Included

• CIT 22mm black latching illuminated switch with 1 ft flying leads
• Mounting nut
• Panel-sealing O-ring

Installation Note

This SPST switch controls one circuit. For separate Navigation and Anchor light control, use one switch for NAV and a second switch for ANC—a common arrangement on custom marine switch panels. Always size circuit protection and wiring for the connected load.

Whether you are building a new boat dash or replacing an existing panel switch, this 22mm waterproof marine push button switch delivers dependable mechanical operation, dual-color illumination, corrosion-resistant 316L stainless construction, and straightforward prewired installation.
