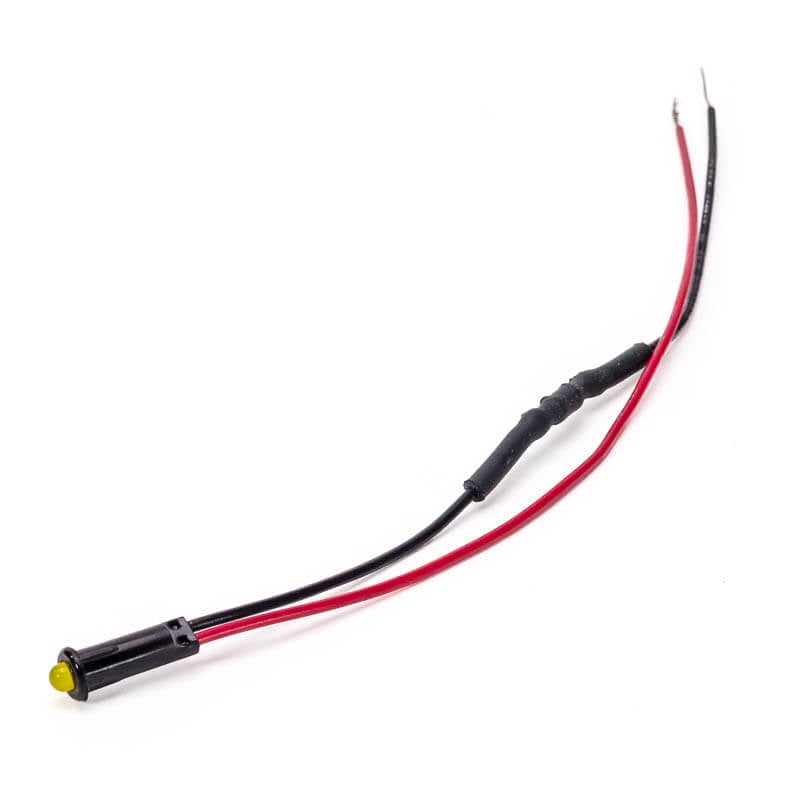

Press-Fit 3mm LED Indicator Lamp – Amber

Product Description

The Press-Fit 3mm LED Indicator Lamp – Amber provides compact, easy-to-see amber status indication for marine switch panels, dashboards, and other DC electrical controls. Rated at 28V and used in both 12V and 24V DC systems, this 12V 24V marine LED indicator light features a built-in resistor and simple press-fit installation.

Key Features

• Amber LED Indication: Provides clear visual identification of circuit, equipment, or system status.
• Compact 3mm LED: Requires minimal panel space for clean control-panel installations.
• 12V & 24V DC Applications: Suitable for use in both 12V and 24V DC electrical systems.
• Built-In Resistor: No separate external resistor is required for installation.
• Press-Fit Mounting: Installs directly into a 0.173″ (4.39mm) mounting hole.
• Pre-Wired: Supplied with 26 AWG leads for convenient electrical connection.

Specifications

• Indicator Color: Amber
• Light Source: 3mm LED
• Voltage Rating: 28V
• Power: 0.6W
• System Compatibility: 12V & 24V DC
• Resistor: Built-in
• Mounting Style: Press-fit
• Mounting Hole: 0.173″ (4.39mm)
• Body Material: Nylon
• Body Color: Black
• Lead Wire: 26 AWG
• Standard Lead Length: 6″
• Wire Strip Length: 3/8″

Applications

• Marine switch and control panels
• 12V and 24V DC electrical systems
• Circuit and equipment status indication
• Bilge pump, navigation light, and accessory indication
• Alarm and warning indication
• Custom boat dashboards and electrical panels
• RV, automotive, and other low-voltage DC control panels

With its amber LED, compact footprint, built-in resistor, and straightforward press-fit installation, this 12V 24V marine LED indicator light provides a clean solution for adding visual circuit and equipment status indication to custom electrical panels.
