USCG Boat Documentation Plate

Product Description

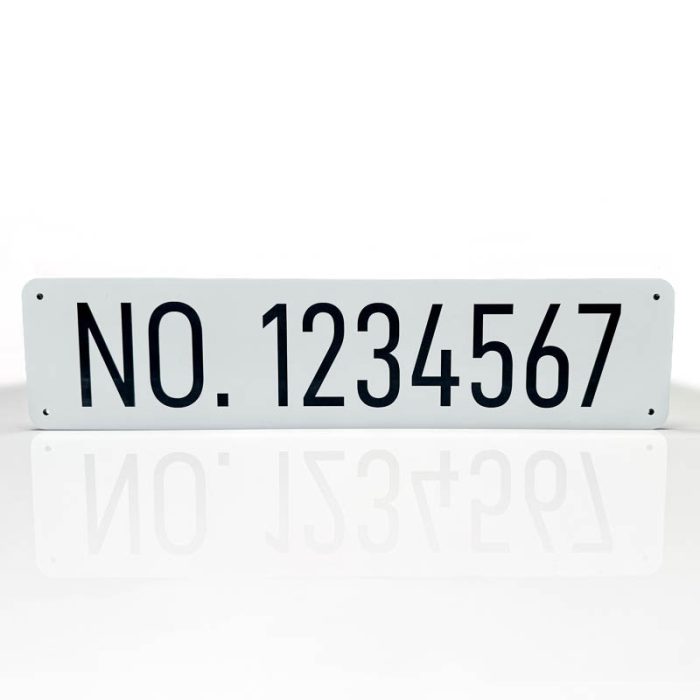

USCG Boat Documentation Plate

The USCG boat documentation plate provides a permanent and compliant way to display your vessel’s official number in accordance with 46 C.F.R. § 67.121. Designed for durability and clarity, this plate ensures your boat meets Coast Guard marking requirements with professional, long-lasting results.

Key Features

• Laser-etched lettering for permanent, compliant vessel marking
• Matte white 3/16″ ABS with contrasting black core for crisp visibility
• Sized at 18″ × 4.25″ to meet USCG documentation board standards
• Corrosion-proof, UV-stable, and waterproof for marine environments
• Easy installation with both adhesive and screw mounting options
• Meets the marking requirement under 46 C.F.R. § 67.121 — your official number must be “permanently affixed … so that alteration, removal, or replacement would be obvious.” (View regulation)

Specifications

• Material: Matte White ABS Plastic with Black Core
• Material Thickness: 3/16″ (4.76 mm)
• Lettering: Laser-Etched, Permanent Marking

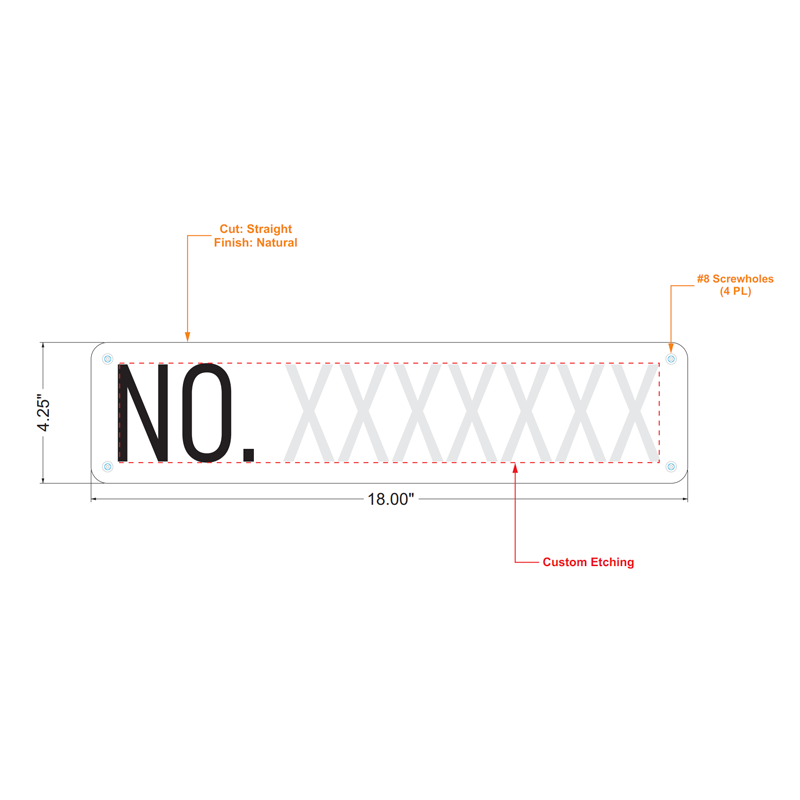

• Dimensions: 18″ Wide × 4.25″ High
• Finish: Matte, Non-Reflective
• Mounting: Adhesive Backing + Four #8 Corner Screw Holes (0.17″ / 4.3 mm diameter) for Permanent Installation
• Compliance: Meets 46 C.F.R. § 67.121 USCG Documentation Marking Requirement (View regulation)
• Environment: UV-Stable, Marine-Grade, Waterproof

Applications

• Permanently marking official vessel documentation numbers
• Compliance with 46 C.F.R. § 67.121 for USCG-documented vessels
• Use on interior bulkheads, transom interiors, or structural hull areas
• Suitable for fiberglass, aluminum, and composite hulls
• Ideal for commercial, recreational, and custom-built boats

Installation Instructions

Proper installation ensures your documentation plate meets the Coast Guard’s “permanent affixing” requirement and remains secure for the life of your vessel.

• Prepare the Surface: Choose a clearly visible interior structural location (such as a bulkhead, transom interior, or hull stringer). Clean thoroughly to remove wax, oil, and residue.
• Apply Marine Adhesive: Coat the back of the plate with a marine-grade adhesive such as 3M™ Marine Adhesive Sealant 5200 to create a strong, permanent bond.
• Secure Mechanically: Fasten using the four pre-drilled #8 stainless-steel screws in the corners. Tighten until snug without overtightening.
• Ensure Permanence: Mount the plate so that removal or replacement would cause visible scarring or damage to the surrounding area, as required by regulation.
• Visibility: Install in an interior location that remains easily visible for inspection — not behind panels, lockers, or removable linings.

Important: Please double-check and enter your official number exactly as it appears on your documentation — errors in numbering are the customer’s responsibility and cannot be refunded due to numerical mistakes.

Built for the marine environment, the USCG boat documentation plate delivers a clean, professional appearance and long-lasting compliance for your documented vessel.
