NAV/ANC Rocker Switch

Learn how to wire a Navigation Anchor Switch (VJD1-D66B). This guide shows how to achieve ON-OFF-BOTH functionality with proper terminal connections and jumpers. Perfect for safe boat lighting!

Product in Video:
Contura II Nav/Anc Switch

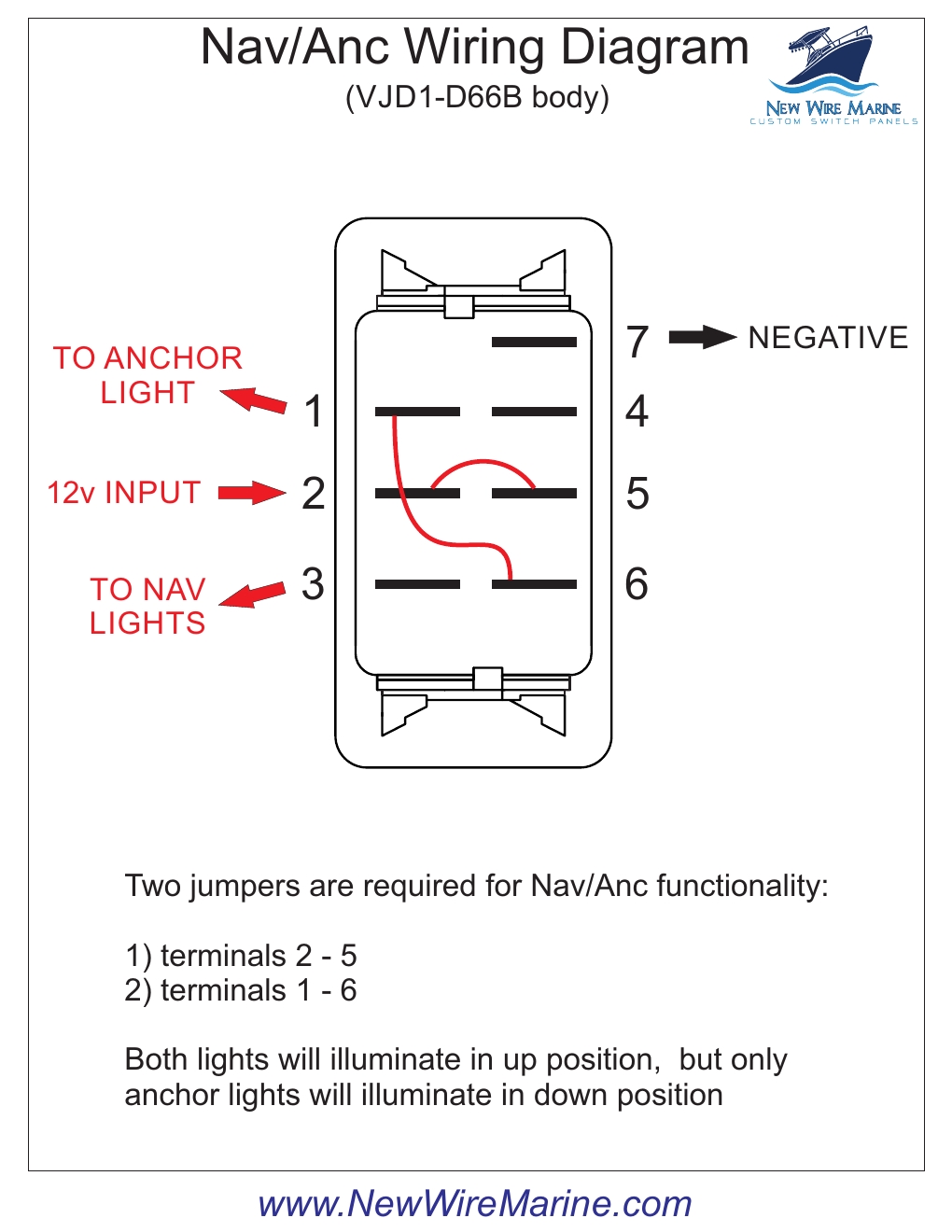

Download 7-Pin Non-Backlight Diagram

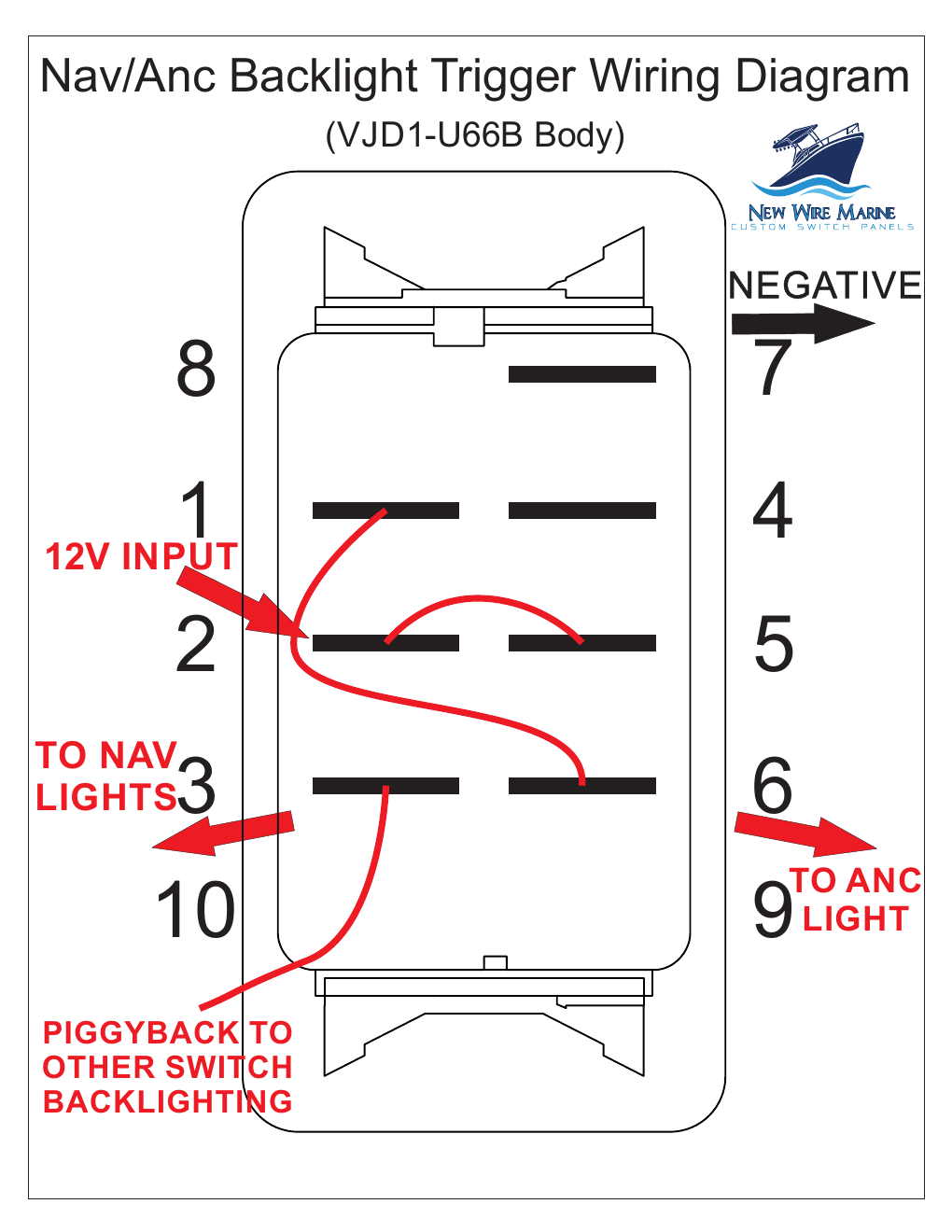

Download 7-Pin Backlight Diagram

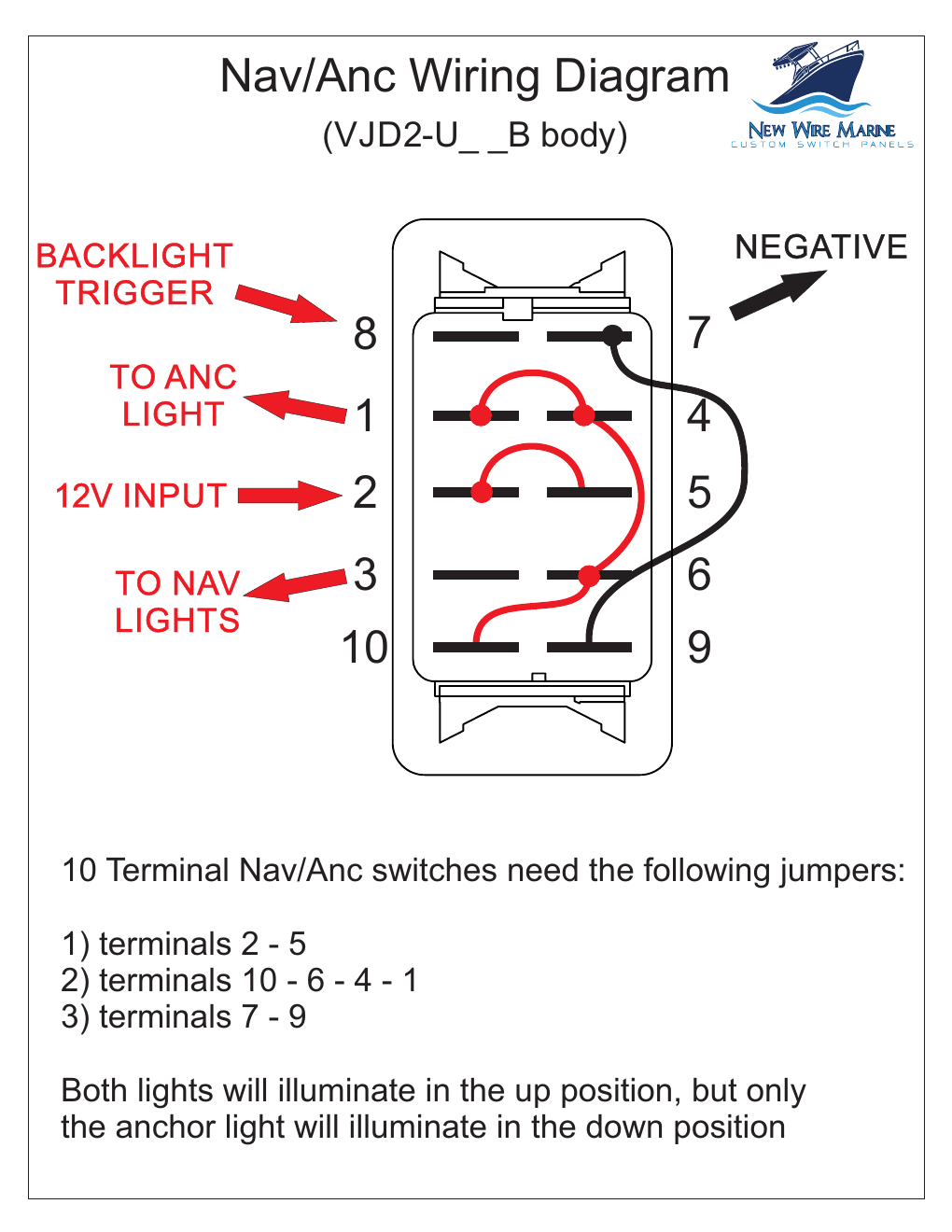

Download 10-Pin Backlight Diagram
