>>>Butt – 14/16 to 10/12

Butt – 14/16 to 10/12

$1.92$54.21

Butt connector

Step-up, 14-16/10-12AWG



SKU: T009 Category:

Product Description

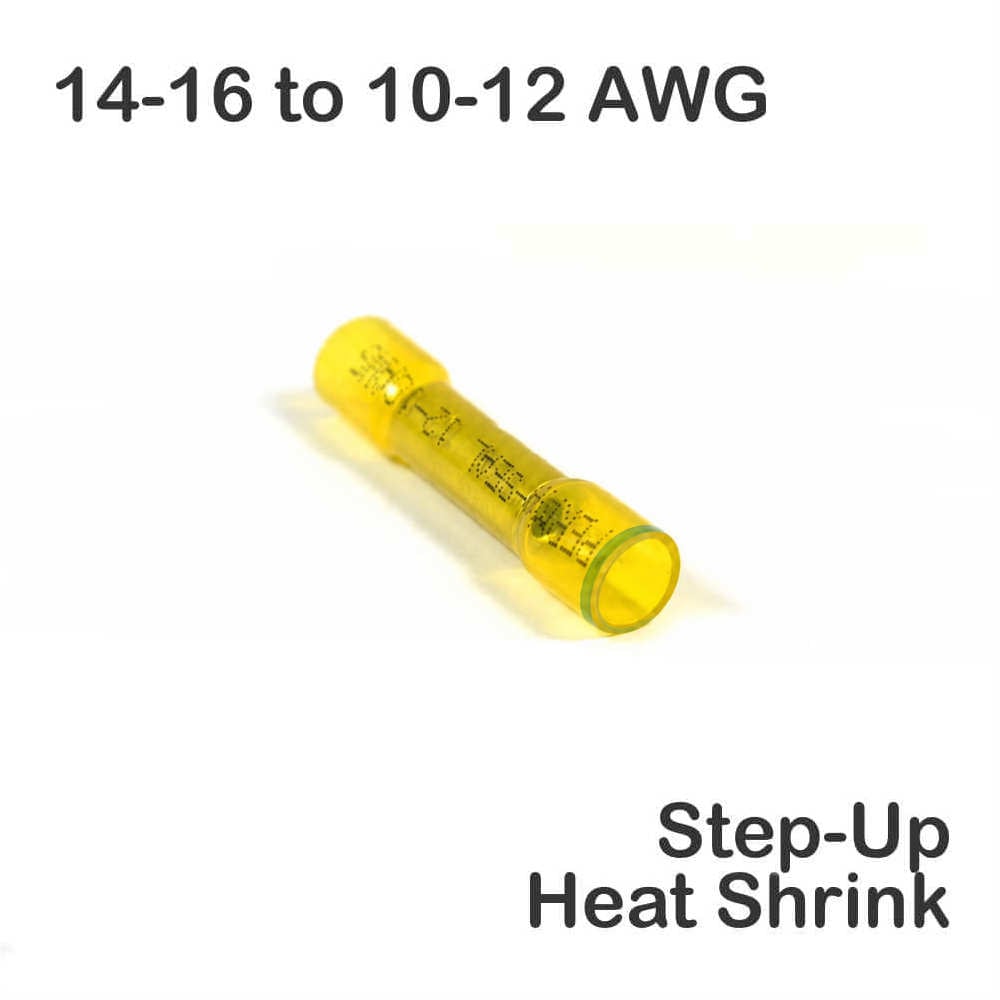

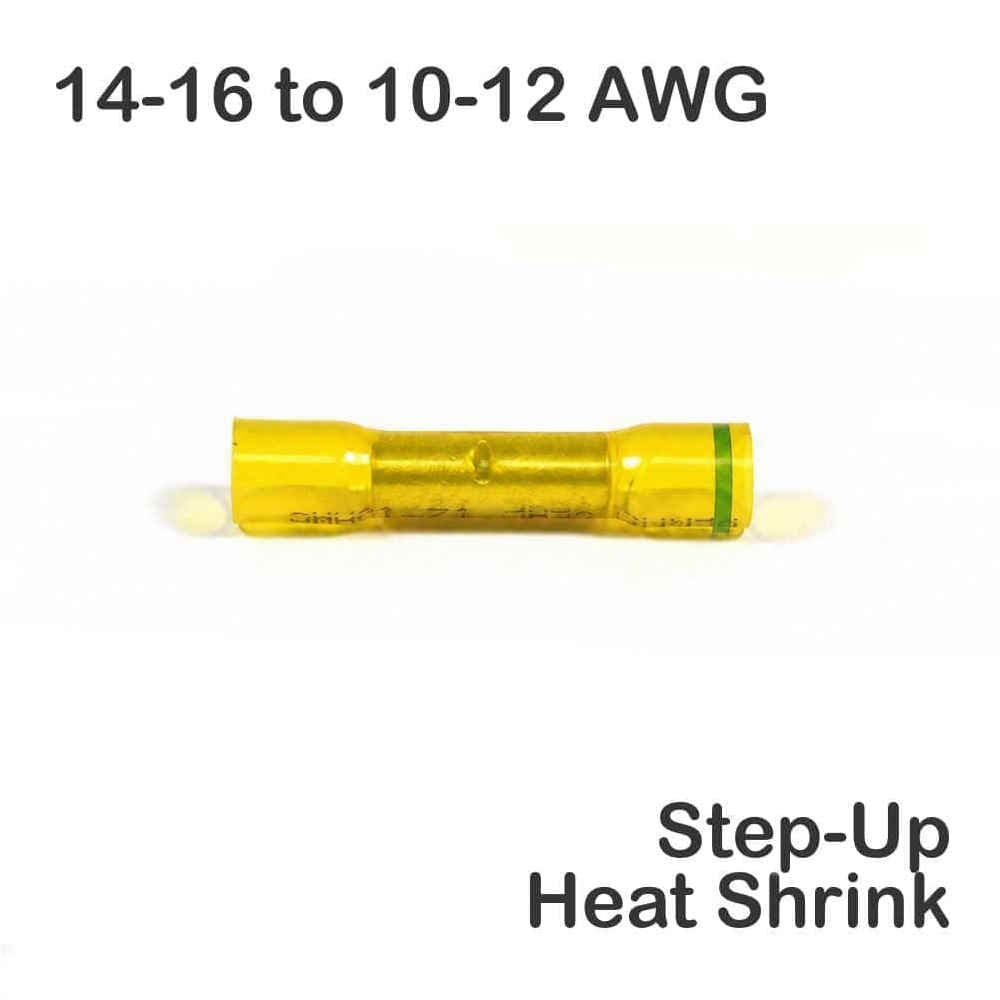

14-16 to 10-16AWG  Step-up Butt Connector


Our assembly guys love this little heat shrink butt connector.  It’s a step-up, with one side accepting a 14 or 16AWG (blue side), and the other side a 10 or 12AWG (yellow side).

It’s also great as a 3-way splice, where you could put two 14AWG’s into the yellow side and a single 14 or 16AWG into the blue side.  This is super common in bilge pump wiring when you want to splice a manual feed from the switch, and an automatic feed from a float switch into the same pump.  See our product photos as an example of this.

This butt splice features a tinned plated copper barrel (with center point stop), and adhesive lined heat shrink wrap.  Zoom in on the third photo to see how well the adhesive seals the opening even with two conductors in the same side.

Specs:

Category: Butt
Type: Step-up
Wire Size: 14-16AWG (blue) and 10-12 AWG (yellow)
