Compact Battery Switch & Breaker Housing – Power Box Go (PW119)
Price range: $120.00 through $211.50

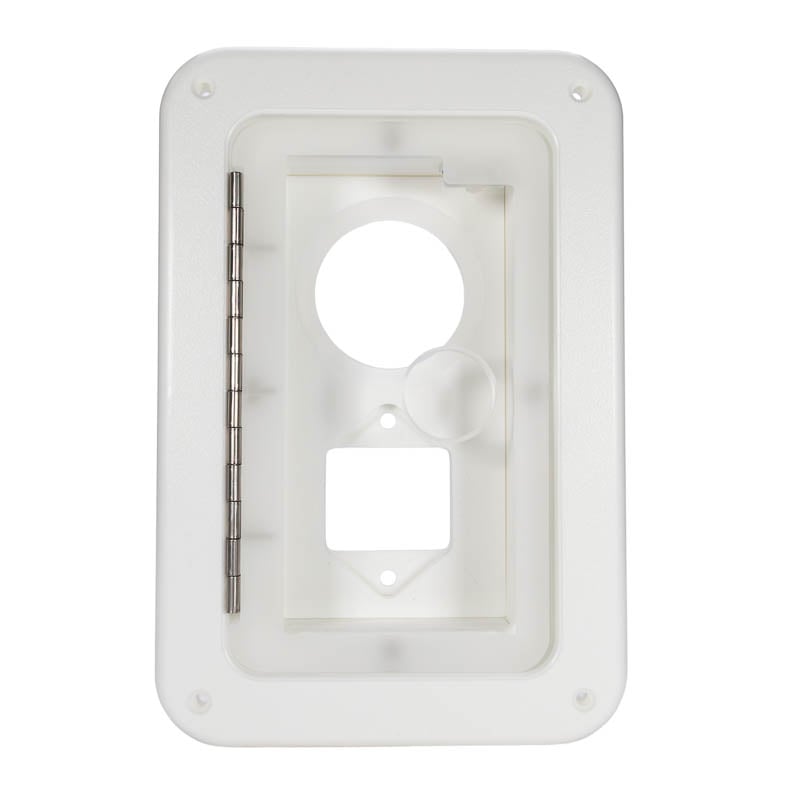

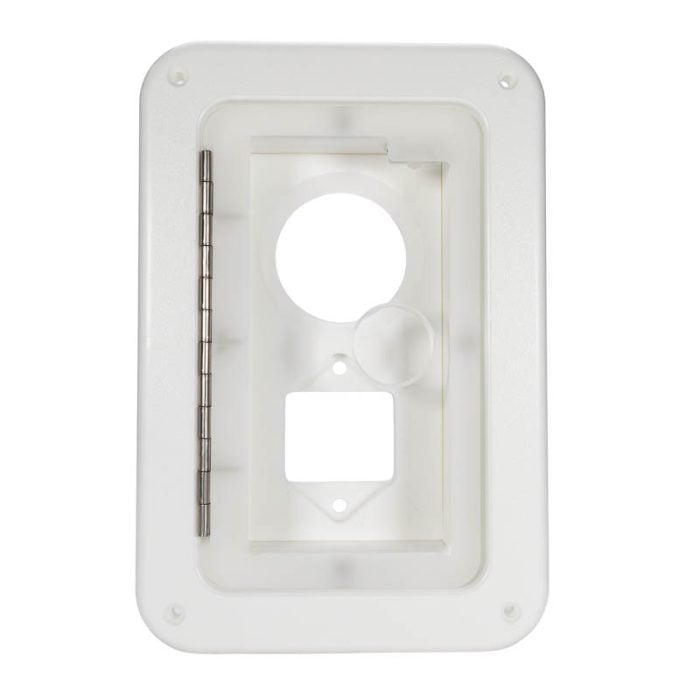

Power Box Go compact battery switch & breaker housing

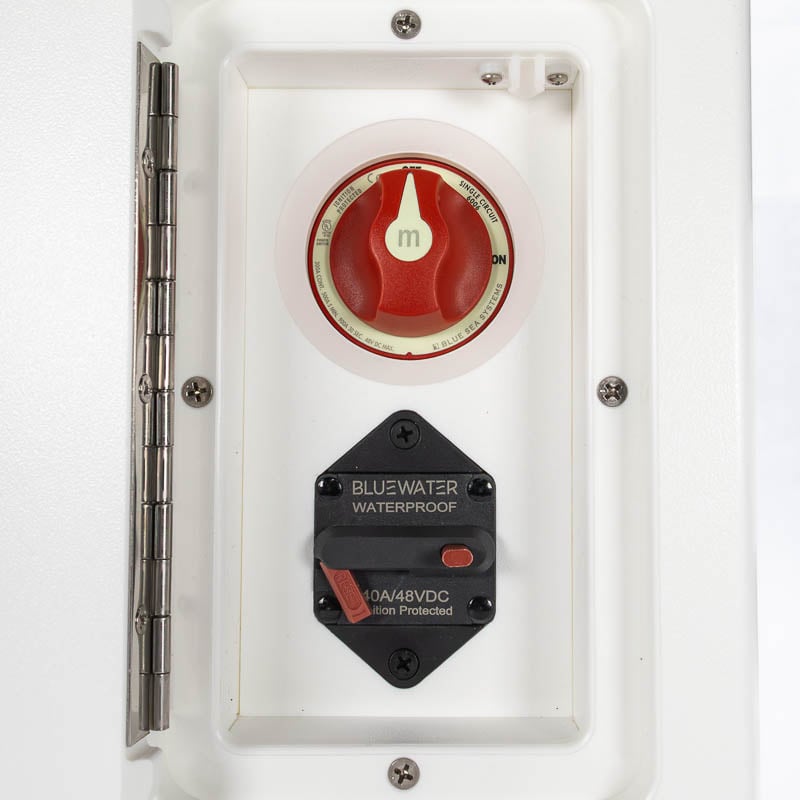

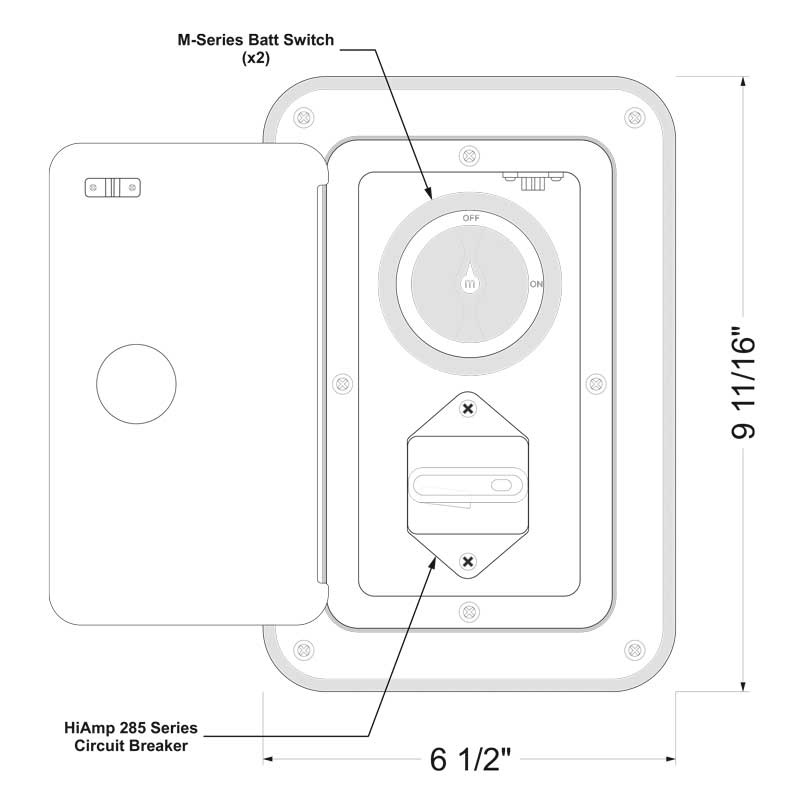

Supports (1) m-Series style Battery Switch and (1) HiAmp 285 Series Circuit Breaker

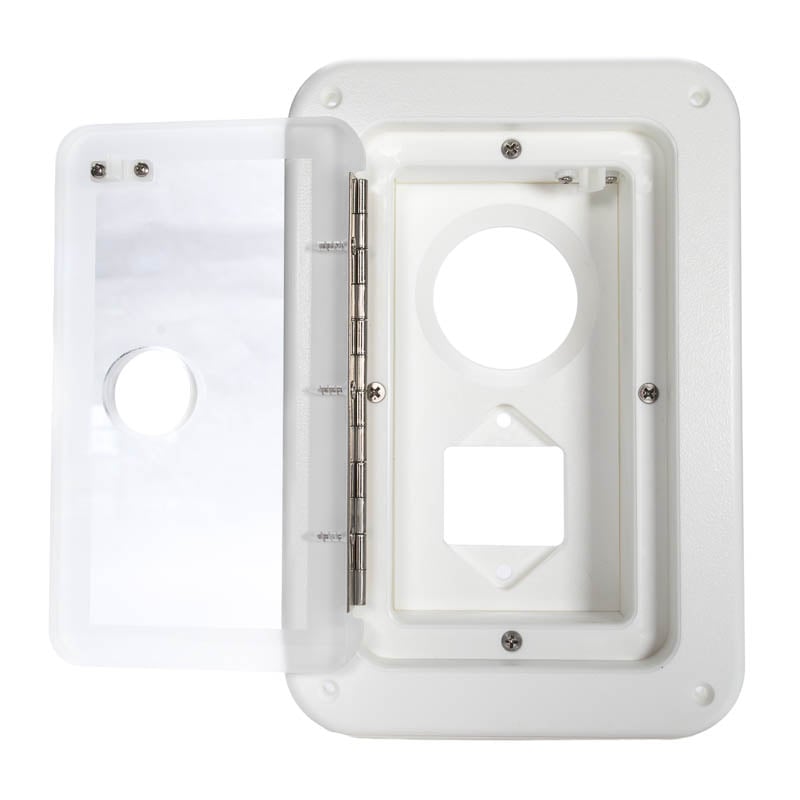

Clear acrylic protective door for quick visual access
White HDPE construction for a clean, factory-style appearance
Fast Shipping
Expert Support
Easy Returns
Product Description
Compact Battery Switch & Breaker Housing – Power Box Go PW119
Product Overview
The Power Box Go PW119 is a sleek, durable battery switch and circuit breaker enclosure designed for simplicity and functionality. Constructed from rugged, UV-stabilized white HDPE, this compact unit features a clear acrylic protective door that shields your electrical components while keeping them easily accessible from the outside. Designed to hold (1) m-Series Battery Switch and (1) HiAmp 285 Series Circuit Breaker, the PW119 is ideal for marine, RV, and automotive power management applications where clean installation and reliable protection are essential.
Key Features
- Battery Switch & Breaker Configuration: Designed to hold (1) m-Series Battery Switch and (1) HiAmp 285 Series Circuit Breaker.
- Simple Bulkhead Mount: Compatible with any wall thickness or bulkhead material for a clean and professional installation.
- Flexible Orientation: Install with the hinge in any direction—up, down, left, or right.
- Quick Power Control Access: Provides convenient exterior access to both the battery switch and resettable breaker.
- See-Through Door: Check switch and breaker status without opening the door.
- Rugged Construction: Impact-resistant and UV-stabilized white HDPE withstands harsh marine and outdoor environments.
- Minimalist Design: Simplifies installation by excluding unnecessary components for cost-effective improvements.
- Secure Mounting: Pre-drilled holes allow for quick, stable installation on various surfaces.
- Compact and Space-Saving: Perfect for tight compartments without sacrificing accessibility.
- Versatile Use: Built for marine environments but also great for RV and automotive power management needs.
Why Choose the Power Box Go PW119?
- Designed with Purpose: Provides exterior access to both the battery switch and breaker while maintaining secure terminal protection.
- Clean and Stylish Aesthetic: The clear door adds a polished, professional look to your installation.
- Reliable Performance: Engineered to deliver dependable operation even in harsh environments.
Application
The Power Box Go PW119 is the perfect solution for relocating hard-to-access battery switches and circuit breakers in boats, RVs, or vehicles. Whether tucked away in a console or storage compartment, its compact design and protective features ensure easy power control access and streamlined electrical system management.
Compact Battery Switch & Breaker Housing Installation
Installation is simple with our included mounting template. Just follow these steps:
- Place the template in your desired location and mark the outline.
- Use a jigsaw to cut out the marked section and drill the screw holes.
- Install the battery switch and HiAmp 285 Series Circuit Breaker to the back of the housing.
- Secure the mount in place, and you’re done!
Customize Your Power Box
Need custom components? We can configure the PW119 to suit your specific needs. Click the Customize button below, send us a message, or call us at (843) 297-8348 to discuss your project with a New Wire Marine expert.
