SEAready 3 Push Button Switch Panel

Name: SEAready 3 Push Button Switch Panel
SKU: 101186
Availability: InStock

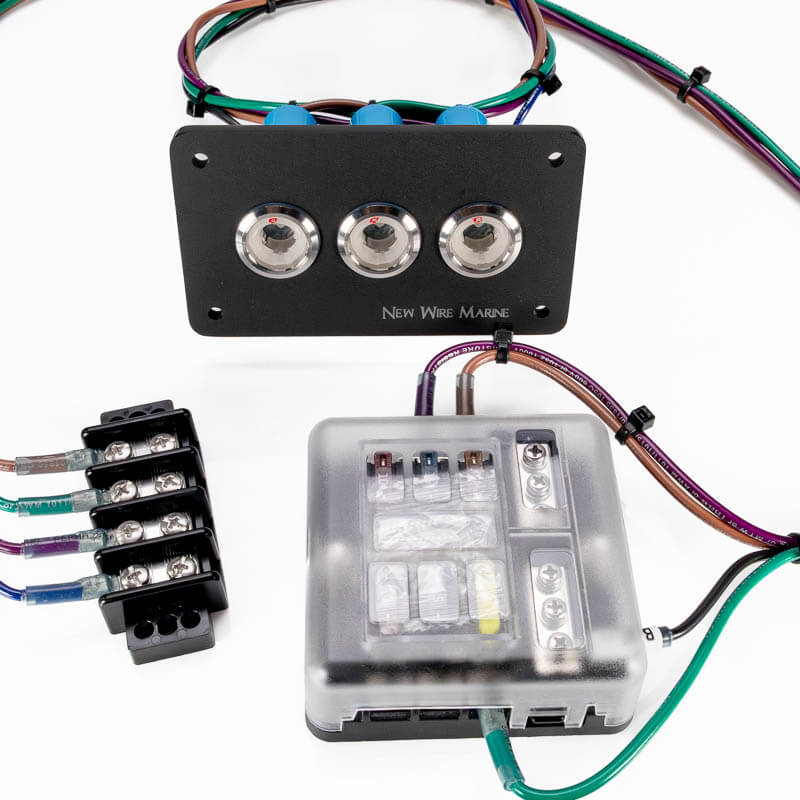

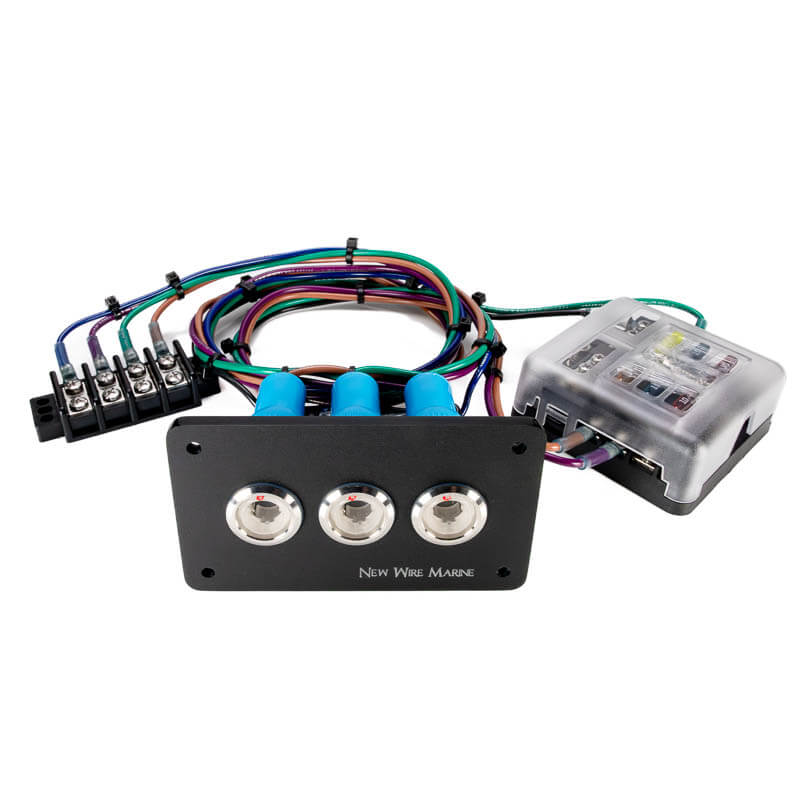

SEAready 3 Push Button Switch Panels are pre-built, ready-to-install solutions. This 3 switch DayBright push button panel is designed for ultimate convenience. With all panel wiring already completed, these push button switch panels come equipped with an integrated LED fuse block with negative bus, pre-wired 2′ leads, and a terminal block for simplified installation.

Our 3 switch panel configuration uses premium Bluewater 22mm DayBright Push Buttons with pre-installed etched actuators selected from the dropdown menus above. Customers can configure Switch Position #1, #2, and #3 with their preferred labels from our extensive library of standard marine actuator options.

Unlike many generic push button panels that rely on unlabeled buttons or low-current switching, SEAready panels combine premium etched actuator labeling, organized marine wiring architecture, and higher current capability into a compact OEM-style solution designed specifically for marine applications.

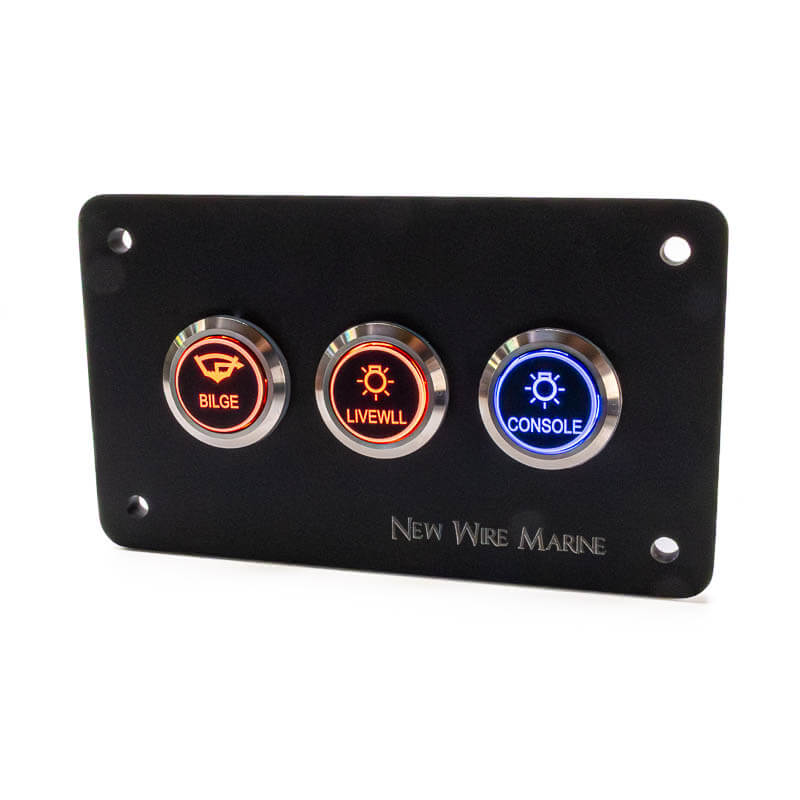

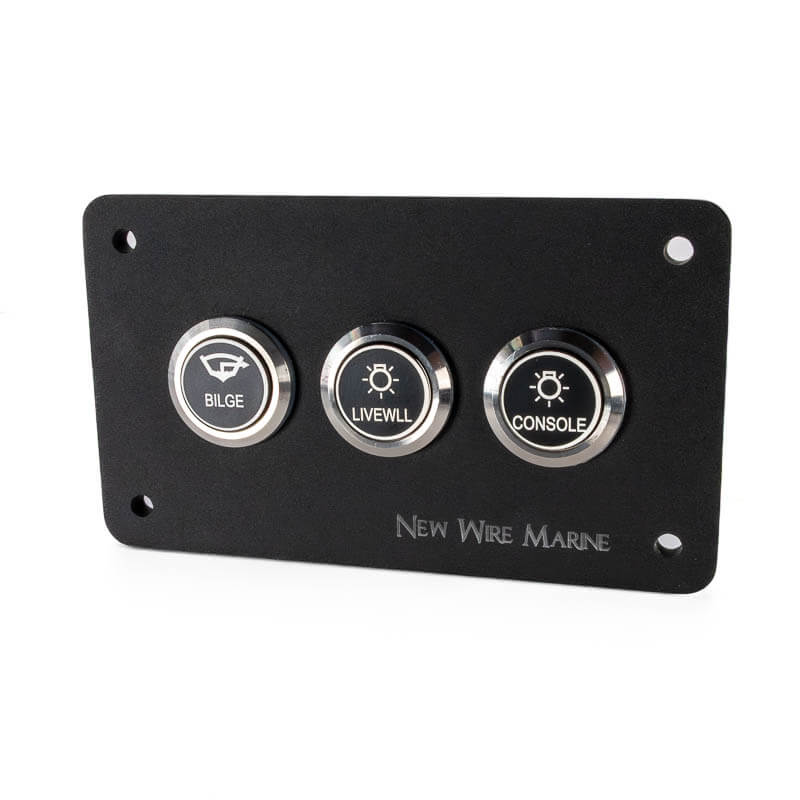

Each panel features a matte black design that looks awesome on any boat. Every panel includes 3 switches being (ON-OFF) style, all customizable with the labels you need. Best of all, SEAready Panels are pre-built and ready to ship the same or next business day, so you can get back on the water faster.

SEAready 3 Push Button Switch Panel Key Features

Switches & Labeling

Bluewater DayBright Switch System:
Features premium 22mm DayBright push buttons with dual-color LED illumination, inrush-protected switching, seamless SS316 stainless steel construction, and IP69K waterproof protection.
Customizable Etched Actuators:
Choose from over 90 standard marine labels for a semi-custom experience with professionally laser etched actuators instead of generic sticker labels or unlabeled push buttons.
20A Rated DayBright Switches with Inrush Protection:
Unlike many competing push button panels limited to only 5A circuits, these Bluewater DayBright push buttons feature inrush-protected switching with switch body ratings up to 20A max for common marine accessories and properly fused branch circuits.
Superior Waterproofing:
Bluewater switch bodies feature seamless SS316 stainless steel construction and IP69K waterproof protection for harsh marine environments.
Easy Switch Serviceability:
Bluewater switch bodies utilize rear plug connectors allowing quick switch replacement or future switch body upgrades if different functions are desired later.

Wiring & Circuit Protection

Integrated Fuse Block:
Includes a pre-installed 6-circuit LED fuse block with negative bus for proper branch circuit protection and simplified power distribution.
Integrated Terminal Block:
Includes a pre-installed 4-gang terminal block providing clean, secure connections for switch outputs and backlight input wiring.
Pre-Wired Installation:
Includes 2′ leads from the fuse block and 2′ output leads to the included terminal block for straightforward installation.
Dedicated Backlight Circuit:
Includes a dedicated backlight trigger input allowing independent control of switch backlighting from a NAV/ANC or external lighting circuit.
Organized Color-Coded Wiring:
Pre-wired output leads use color-coded marine wire for simplified identification during installation and troubleshooting.
Marine-Grade Wiring:
Switch outputs are pre-wired using marine-grade 14AWG wire with dedicated fused branch circuits.
Effortless Installation:
Designed for straightforward, hassle-free installation with organized terminal block wiring architecture.
Optional Blocking Diode Available:

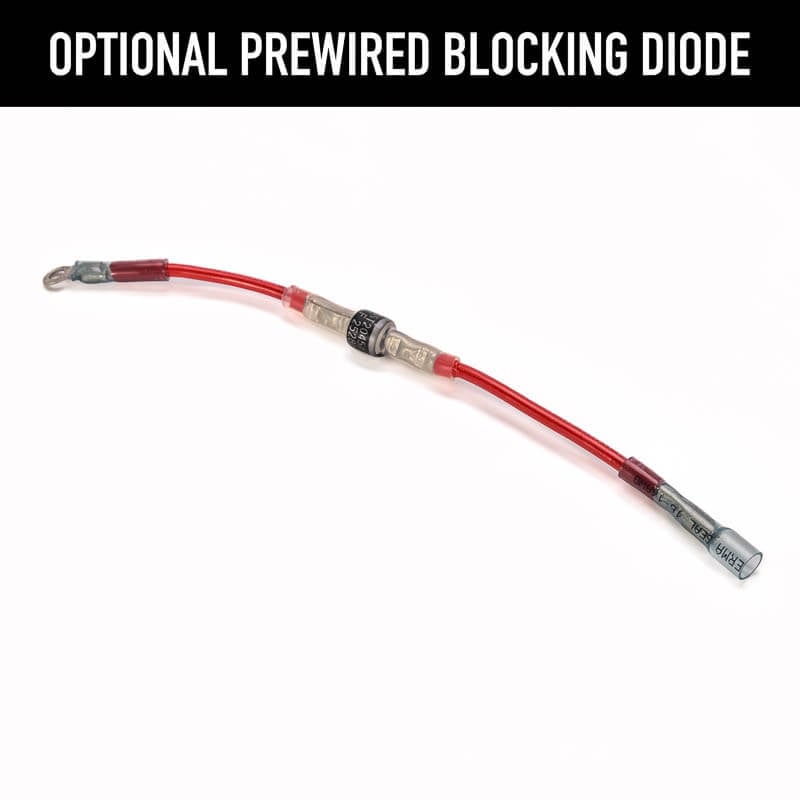

For automatic bilge pump installations and other circuits requiring backfeed protection, an optional pre-wired 20A blocking diode can be added from the product options above. The assembly includes a 14AWG wire lead, marine-grade #8 ring terminal, heat shrink protected 20A blocking diode, and a 14-16AWG heat shrink butt connector for simplified installation.

Panel Construction & Installation

OEM Aesthetic:
Designed to blend seamlessly with your boat’s dash, built from 1/4″ LuxMatte premium black matte acrylic with polished edges for a refined, factory-installed appearance.
Compact Footprint:

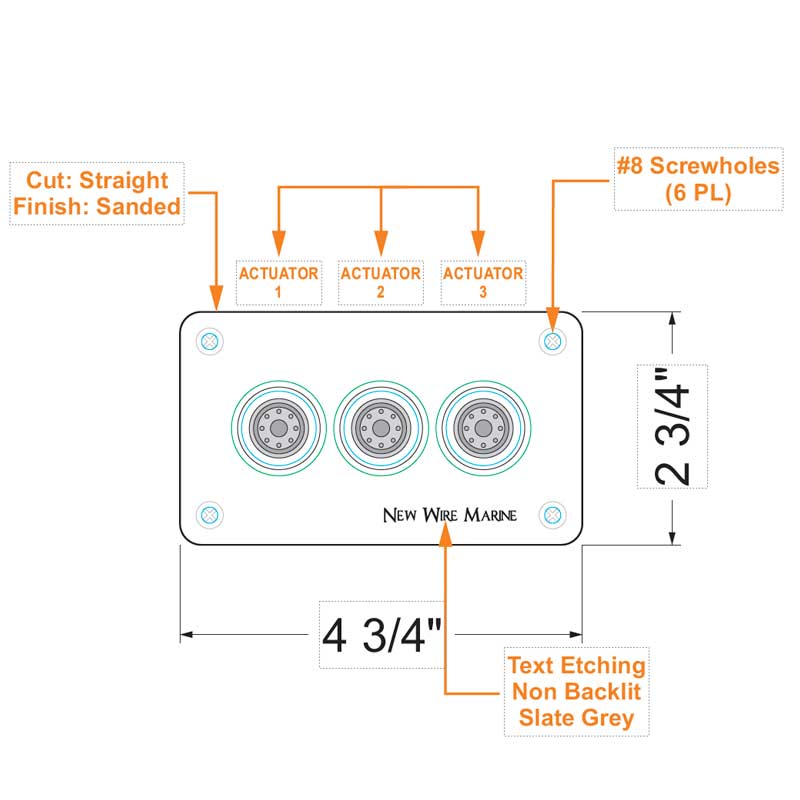

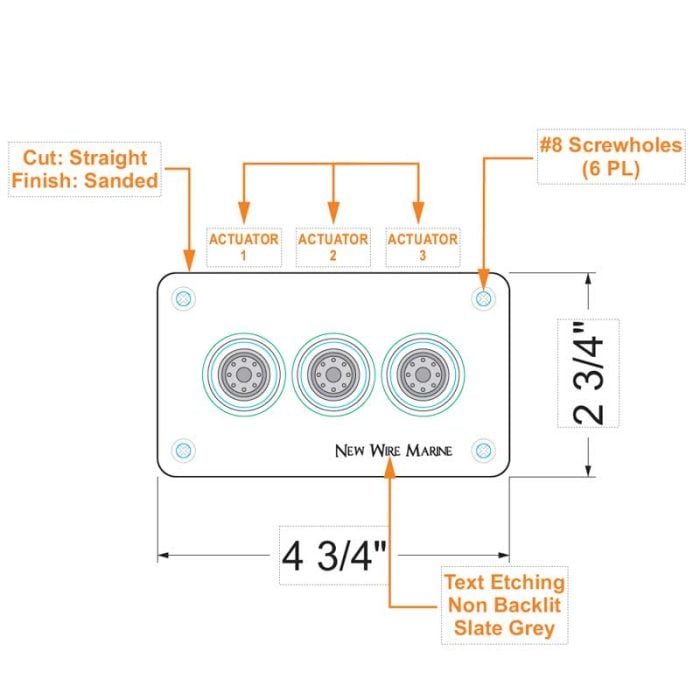

Compact 4 3/4″ x 2 3/4″ panel dimensions with an approximate 3 3/4″ overall installation depth make this panel ideal for tight helm and console spaces.
Cutting Template Included:
Includes a cutting template for straightforward and accurate installation.
Quality Craftsmanship:
Hand-assembled in Charleston South Carolina with your chosen actuator labels for a high-quality, tailored finish.
Fast Shipping:
Ships with nearly zero lead time, ensuring quick delivery and immediate installation.

Built to withstand harsh marine environments with a sleek, matte black design, this 3 switch DayBright push button panel comes pre-configured for common setups and is ideal for DIY fabricators, center consoles, skiffs, bay boats, and custom marine electrical systems.

Frequently Asked Questions:

1. Can I choose my switch labels and still get it quickly?

Yes, the panels are pre-built, but we are able to customize them with the selected etched actuator label options available above and still ship them same/next day.

2. How do the backlights turn on?

The DayBright push buttons feature dual-color LED functionality with active-state illumination plus a separate backlight circuit. There is a dedicated backlight input terminal on the included terminal block. Attach the positive lead you want to trigger the backlight circuit here. Often this is a NAV/ANC or dimmer switch from another panel.

Alternatively, if you want one of the push buttons on this panel to activate the backlight circuit, you can use a terminal block jumper.

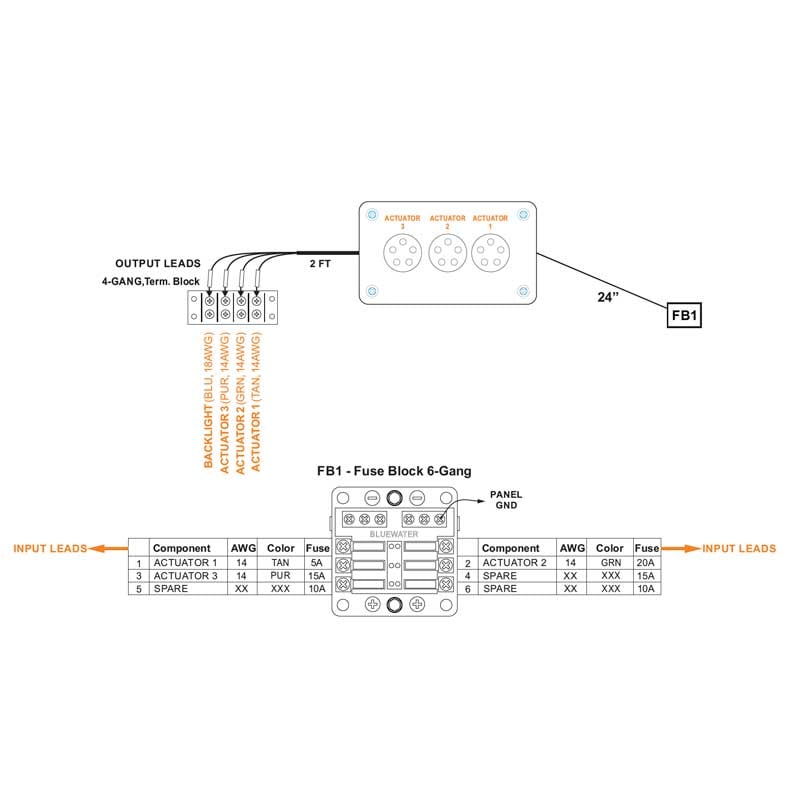

3. How will I attach a SEAready panel to my existing wiring?

You’ll apply a single positive and negative input wire to the integrated fuse block.

Each switch output is pre-wired to the included terminal block for simplified connection to your loads and accessories.

The included fuse block provides individual branch circuit protection for each switched output.

4. What if I want a different switch function? (ex: momentary)

Each 3 switch SEAready panel is pre-made with latching ON-OFF push buttons. If you need any other switch function, simply purchase the switch separately and change the switch body.

We recommend using 22mm Daybright Bodies for proper compatibility with this SEAready panel system.

Find compatible switch body options here:
Bluewater 22mm Switch Bodies.

5. I do not see the switch label I want in the dropdown menu.

We’ve added many of our standard marine actuator labels in the dropdown menus above. If you do not see the actuator you need, we also offer additional etched actuators separately and can create a fully custom etched actuator specifically for your application.

6. What will my selected switch look like?

To find a visual representation of each actuator in the dropdown menus, browse our available etched actuator options here.

7. What is the optional blocking diode used for?

The optional blocking diode is commonly used in automatic bilge pump installations that utilize a float switch. It acts as an electrical one-way valve, preventing power from backfeeding into the manual switch circuit when the float switch activates the pump automatically.

Without a blocking diode, automatic pump operation can sometimes cause switch lights, dash indicators, warning buzzers, or other connected circuits to activate unintentionally.

The optional pre-wired assembly includes a 20A blocking diode with marine-grade 14AWG wiring, a #8 ring terminal for fuse block connection, and a 14-16AWG heat shrink butt connector for connection to the bilge pump circuit.
