Wedgelock for AT06-6S, 2 Key

Product Description

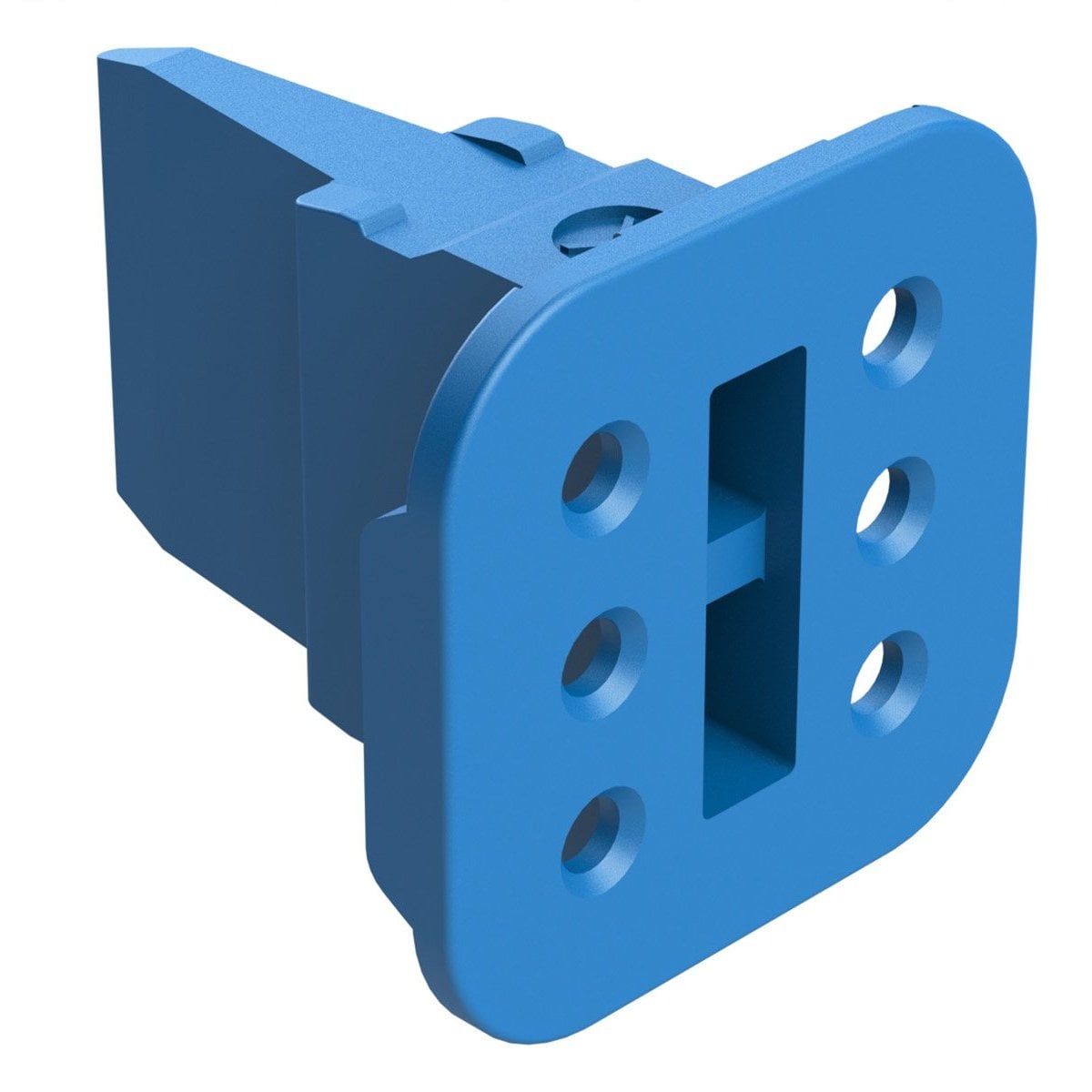

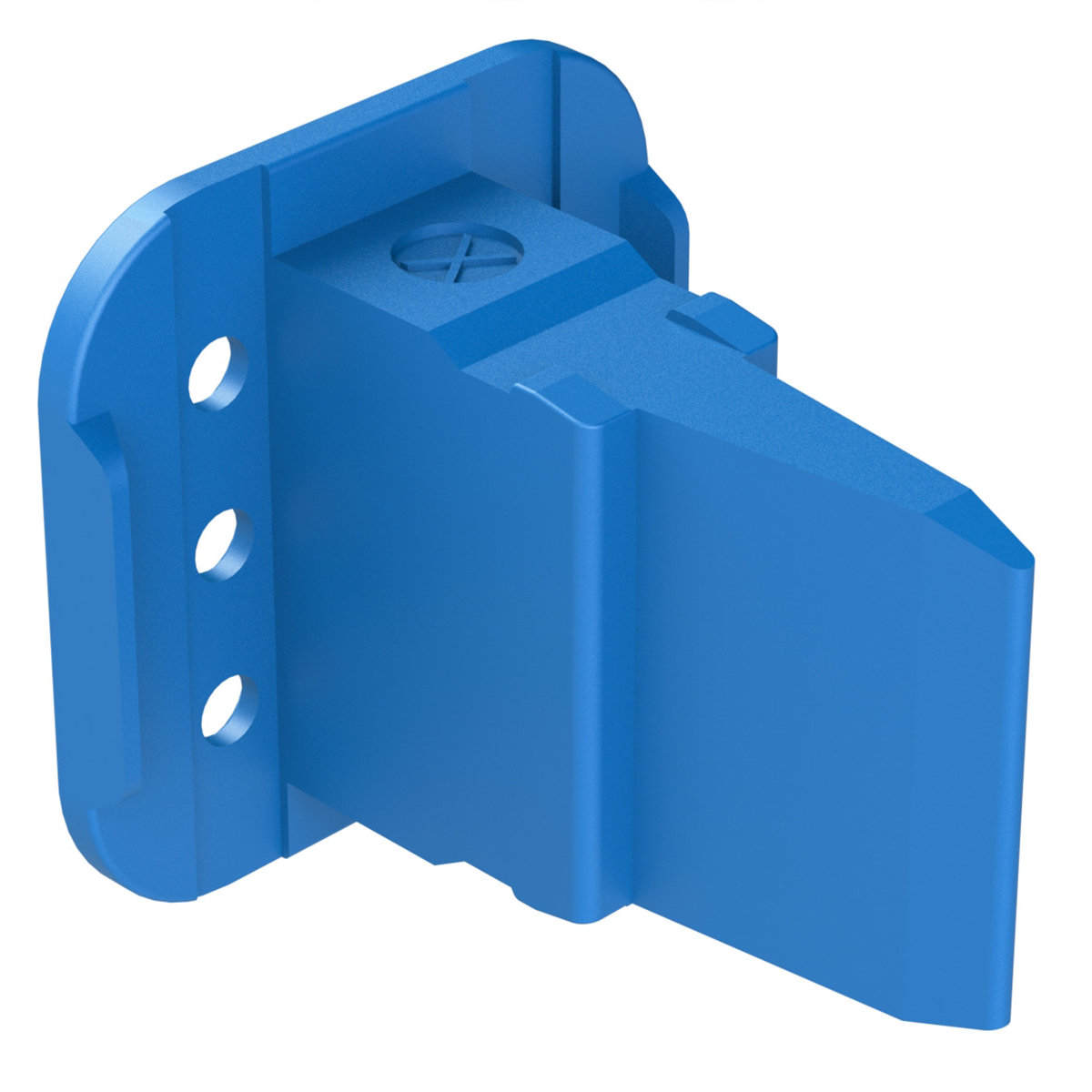

AW6S2-BLU, 6 Position Socket Wedgelock for AT06-6S, Key 2, Blue

Note, This blue 2-Key’d wedgelock is a a specialized part only required if you’re mating to an “Key 2” receptacle.  If you’re mating to a normal unkeyed receptacle, you probably want the green AW6S instead found here.

The AW6S2-BLU is a 6-position socket wedgelock from Amphenol’s AT Series. Designed as the wedgelock component of the four-part AT connector system, it is used to secure and align socket contacts in AT06-6S plug housings. This Key 2, Blue version is comparable to PN W6S2-P012 and offers proven reliability for marine, RV, solar, and other demanding electrical applications.

Features

• 6-position wedgelock: Aligns and secures six socket contacts in AT06-6S plug housings.
• Key 2 design: Ensures proper orientation and prevents mis-mating.
• Durable thermoplastic: Built for harsh conditions with high impact and chemical resistance.
• Marine-ready: IP67 sealed when mated, ideal for boats, RVs, and off-grid systems.
• Amphenol quality: Deutsch-style wedgelock trusted in OEM and aftermarket builds.

Specifications

• Part Number: AW6S2-BLU
• Comparable PN: W6S2-P012
• Positions: 6 (socket cavities)
• Contact Size: 16
• Max Current Rating: 13A per cavity
• Material: Thermoplastic
• Color: Blue
• RoHS Compliant: Yes
• Sealing: IP67 when mated

What’s Included

• 1 × AW6S2-BLU Socket Wedgelock (Key 2, Blue)

Required Mating Parts

• Plug: AT06-6S (6-way plug housing)
• Sockets: AT62-201-16141 (16–20 AWG)
• Sockets: AT62-209-16141 (14 AWG)
• Sealing Plug: A114017 (for unused cavities)

Applications

• Marine dashboards and electrical systems
• RV and off-grid solar wiring
• OEM and aftermarket harnesses
• Heavy equipment and industrial connectors

With rugged construction and secure alignment, the AW6S2-BLU 6 Position Socket Wedgelock ensures reliable performance in harsh environments, making it a trusted choice for marine, RV, solar, and industrial applications.
