WirePack PRO 10-Pin NAV/ANC Wiring Backpack for Carling VJD2 Switches

Product Description

WirePack PRO 10-Pin NAV/ANC Wiring Backpack for Carling VJD2 Switches is a pre-wired 10 pin nav anc wiring harness designed to simplify one of the most common but confusing panel wiring jobs. Built to snap onto compatible Carling Contura V-Series switch bodies, it eliminates jumper wires and streamlines NAV/ANC switch wiring for a cleaner, faster installation. Snap It. Wire It. Done.

Key Features

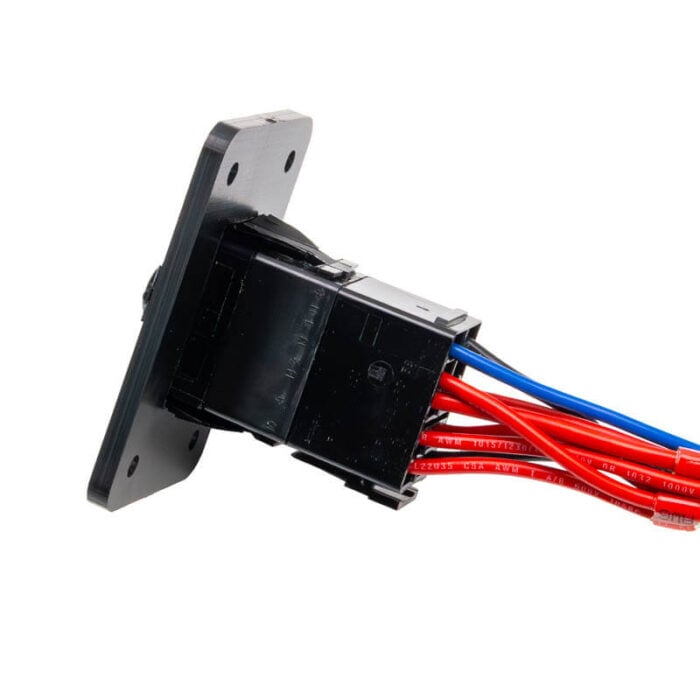

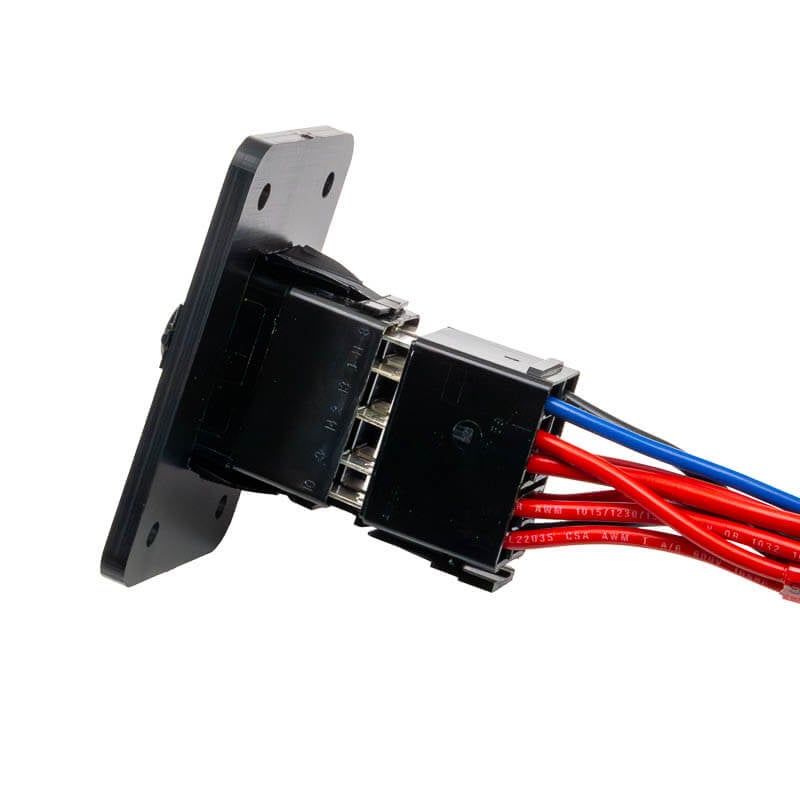

• Snap-on wiring backpack designed for Carling Contura V-Series switches
• Pre-wired specifically for NAV/ANC (navigation / anchor light) switch circuits
• Wired so, up is BOTH lights, and DOWN is anchor light only
• Top backlight can be trigged by a separate switch (ie dimmer, or panel light switch) or crimped into one of the outputs
• Eliminates jumper wires and reduces switch wiring complexity

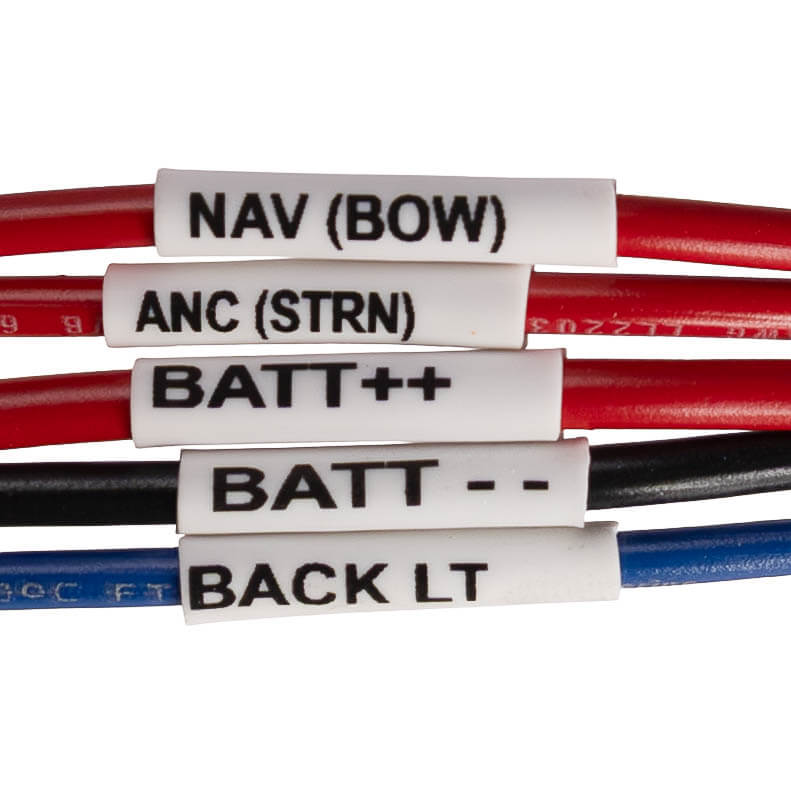

• 6.5″ marine-grade leads with heat shrink wire labels on each wire

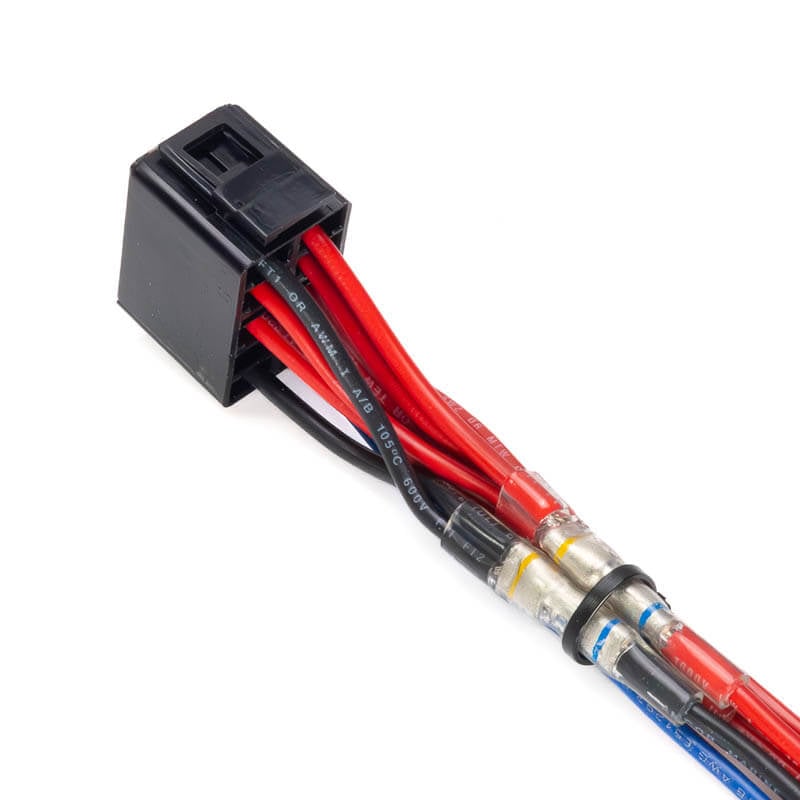

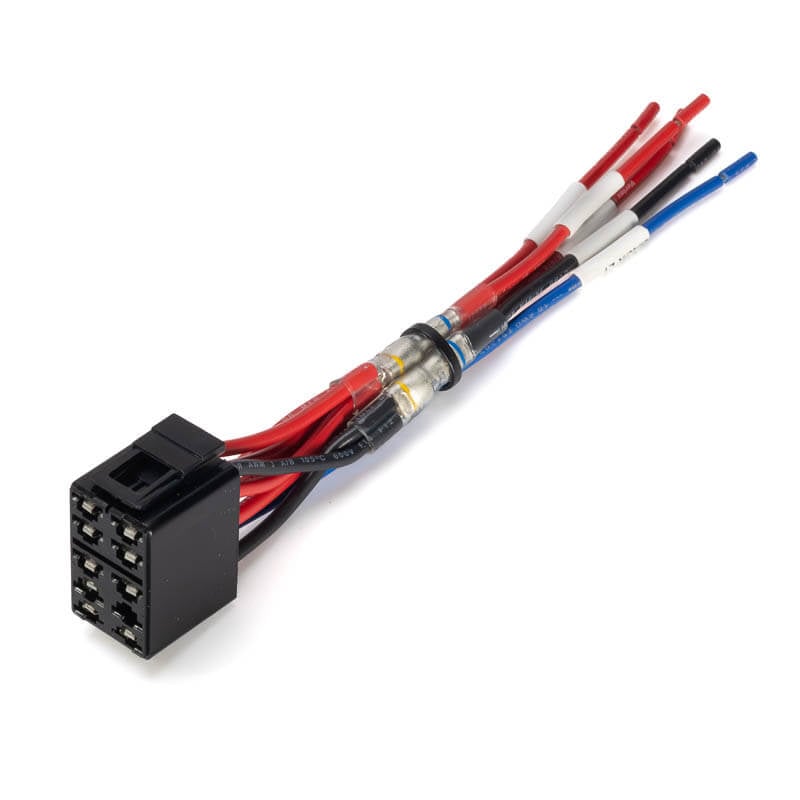

• Uses a 10-terminal Packard-style connector (VC1-01) with Aptiv Metri-Pack 630 terminals
• Compatible with VJD2 ON-OFF-ON, DPDT, 10-terminal switch layouts
• Hand-assembled in Charleston, SC
• DIY-friendly install — Snap It. Wire It. Done.
• Switch body sold separately

Specifications

• Circuit Type: NAV/ANC (Navigation / Anchor)
• Pin Configuration: 10-Pin
• Switch Compatibility: Carling Contura V-Series (VJD2, ON-OFF-ON, DPDT)
• Connector Type: 10-Terminal Packard (VC1-01 style)
• Terminals: Aptiv Metri-Pack 630
• Wire Length: 6.5 inches
• Wire Type: Marine-grade
• Labeling: Heat shrink wire labels on each lead
• Mounting: Snap-on to switch body
• Assembly: Hand-assembled in Charleston, SC
• Switch Included: No (sold separately)

Applications

This harness is built for one focused job: wiring a NAV/ANC switch on your panel, where up is both lights, and down is only the anchor light. It simplifies the wiring process by replacing jumper-heavy switch wiring with a clean, pre-wired solution that installs directly onto the back of the switch.

If you prefer to build your own custom harness, you can use the same components found in WirePack PRO—including the VC1-01 connector, Metri-Pack 630 terminals, and a proper Metri-Pack crimp tool to achieve reliable, professional results.

If you need a clean, simple way to wire a NAV/ANC switch, this 10 pin nav anc wiring harness helps reduce confusion, save time, and create a more organized panel installation. WirePack PRO delivers a professional-grade solution for marine switch panels—Snap It. Wire It. Done.
