WirePack PRO Dual 10-Pin Hydraulic Trim Tab Wiring Backpack for Carling VLD2 Switches

Product Description

WirePack PRO Dual 10-Pin Hydraulic Trim Tab Wiring Backpack for Carling VLD2 Switches is a pre-wired 10 pin trim tab wiring harness designed to simplify one of the most complex panel wiring jobs. Built to snap onto compatible Carling Contura V-Series switch bodies, it eliminates jumper wires and streamlines hydraulic trim tab switch wiring for a cleaner, faster installation. Snap It. Wire It. Done.

Key Features

• Snap-on wiring backpack designed for Carling Contura V-Series switches
• Pre-wired specifically for hydraulic trim tab (dual actuator) switch circuits
• Designed for dual momentary (ON)-OFF-(ON) DPDT switch control
• Eliminates jumper wires and reduces complex trim tab wiring logic
• 6.5″ marine-grade leads with heat shrink wire labels on each wire

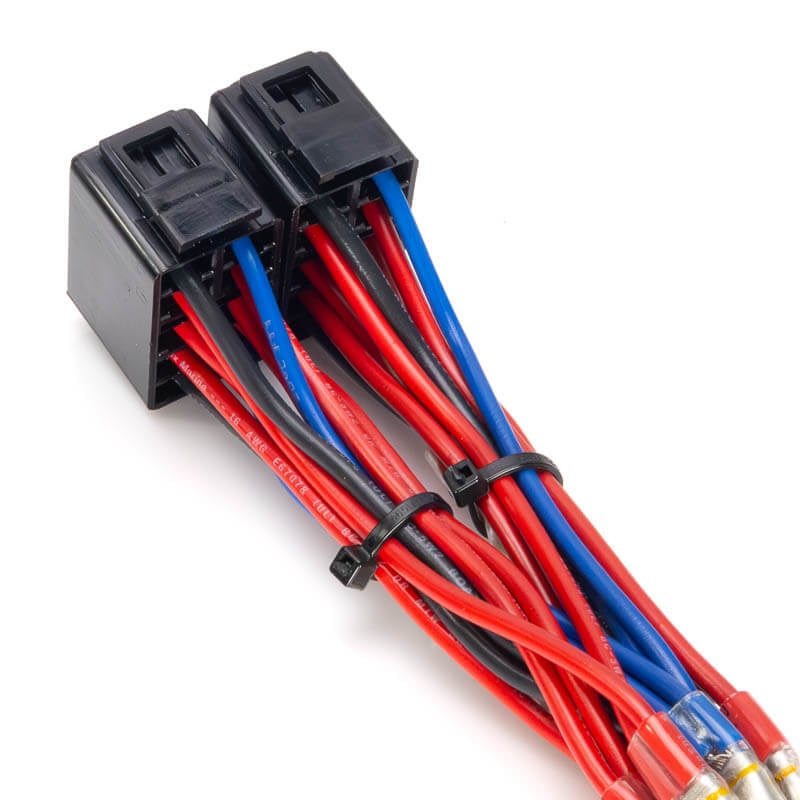

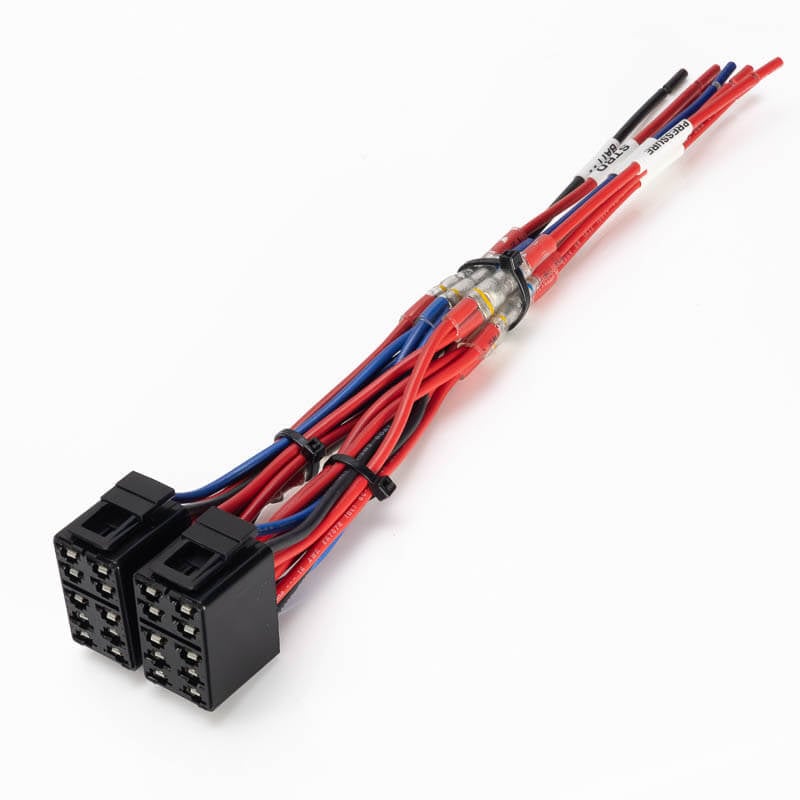

• Uses (2) 10-terminal Packard-style connectors (VC1-01) with Aptiv Metri-Pack 630 terminals
• Compatible with VLD2 momentary (ON)-OFF-(ON), DPDT, 10-terminal switch layouts
• Hand-assembled in Charleston, SC
• DIY-friendly install — Snap It. Wire It. Done.
• Switch bodies sold separately

Specifications

• Circuit Type: Hydraulic Trim Tabs (Dual Actuator)
• Pin Configuration: Dual 10-Pin
• Switch Compatibility: Carling Contura V-Series (VLD2, momentary (ON)-OFF-(ON), DPDT)
• Connector Type: (2) 10-Terminal Packard (VC1-01 style)
• Terminals: Aptiv Metri-Pack 630
• Wire Length: 6.5 inches
• Wire Type: Marine-grade

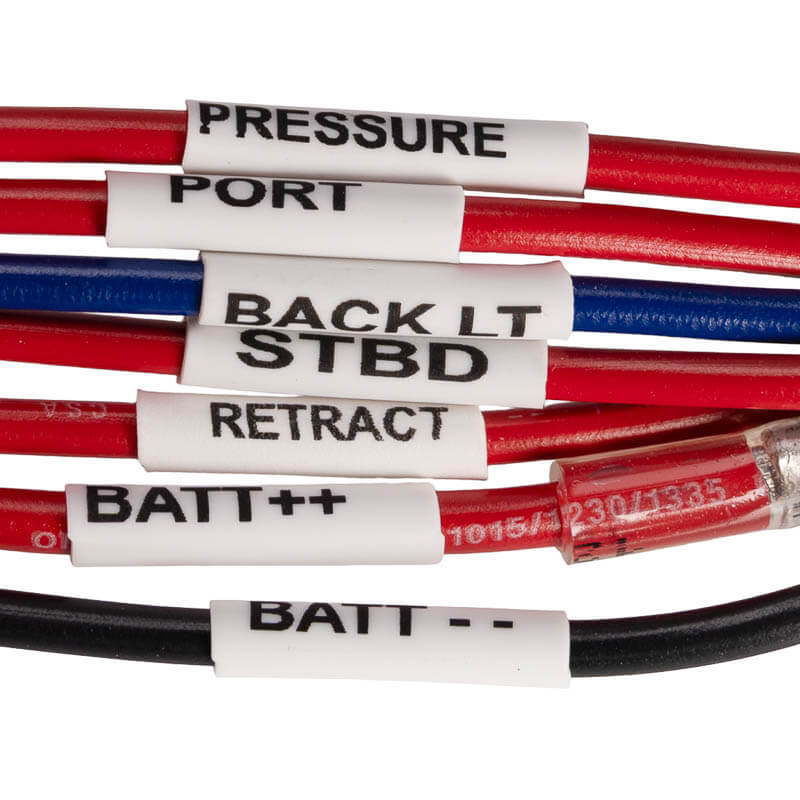

• Labeling: Heat shrink wire labels on each lead

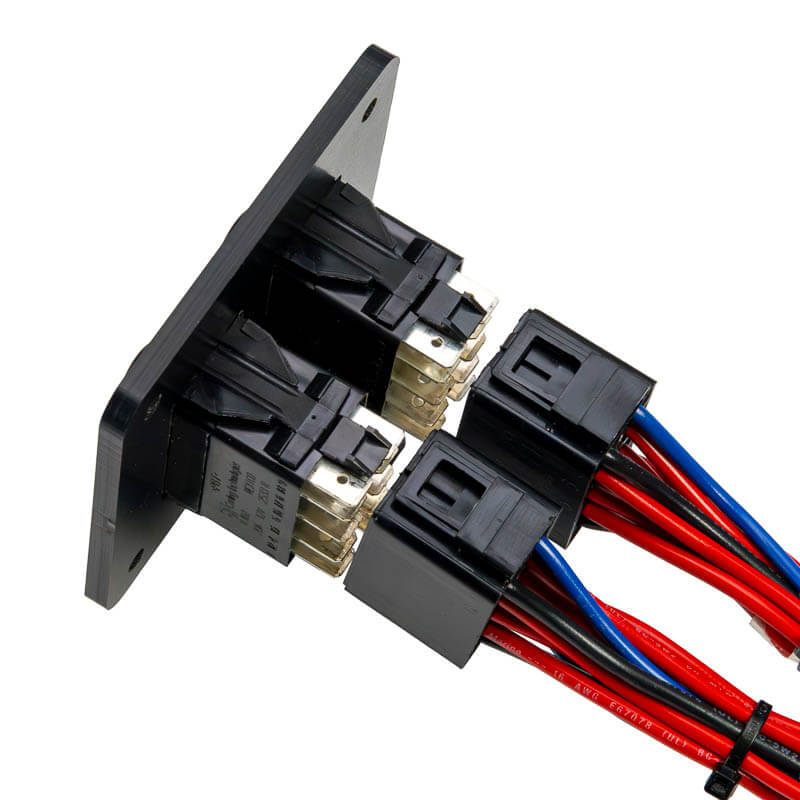

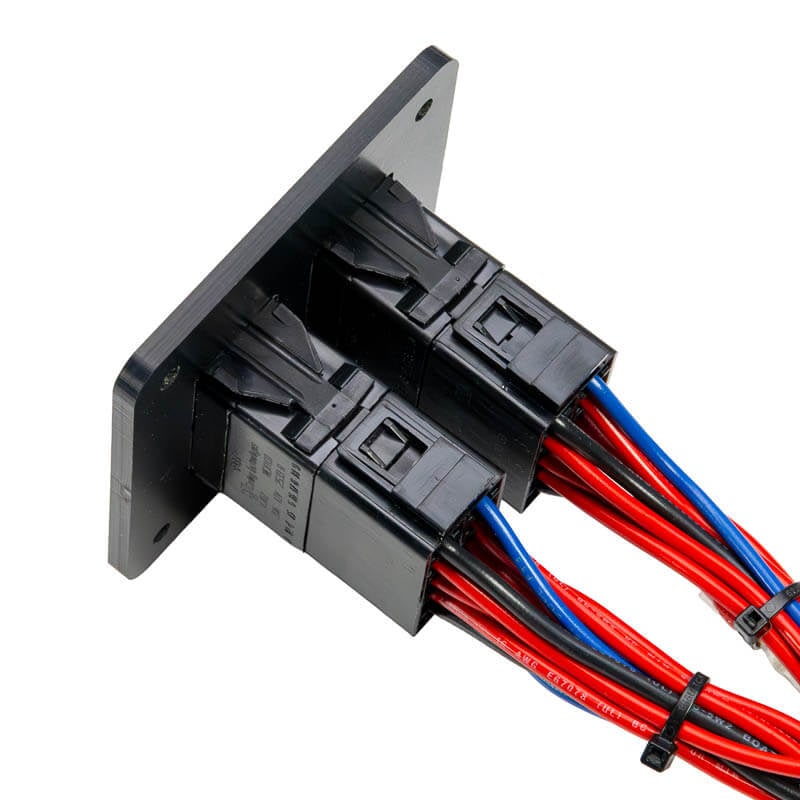

• Mounting: Snap-on to switch body
• Assembly: Hand-assembled in Charleston, SC
• Switch Included: No (sold separately)

Applications

This harness is built for one focused job: wiring hydraulic trim tab switches on your panel. It simplifies the wiring process by replacing complex jumper configurations with a clean, pre-wired solution that installs directly onto the back of two switches for dual actuator control.

This WirePack PRO is specifically designed for hydraulic trim tab systems and is not intended for electric trim tab setups, which use different switching logic.

Need help understanding trim tab wiring? Check out our guide, How to Wire Trim Tabs, which walks through proper wiring methods and system layout for hydraulic trim tab control.

If you prefer to build your own custom harness, you can use the same components found in WirePack PRO—including the VC1-01 connectors, Metri-Pack 630 terminals, and a proper Metri-Pack crimp tool to achieve reliable, professional results.

If you need a clean, simple way to wire hydraulic trim tab switches, this 10 pin trim tab wiring harness helps reduce confusion, save time, and create a more organized panel installation. WirePack PRO delivers a professional-grade solution for marine switch panels—Snap It. Wire It. Done.
