VJD1-GCCB
$21.00
ON-OFF-ON, DPDT
Independent top lamp
Dependent bottom lamp
8 terminals
Fast Shipping
Expert Support
Easy Returns
Product Description
VJD1-GCCB ON-OFF-ON DPDT Rocker Switch Body
The Carling Technologies VJD1-GCCB is an eight-terminal ON-OFF-ON DPDT rocker switch body for 12-volt marine and vehicle electrical panels. Its two red LED lamps have different jobs: the top lamp is independently powered for panel backlighting, while the bottom lamp is dependent on the switch circuit for status indication.
This lamp arrangement makes the VJD1-GCCB especially useful as a NAV/ANC rocker switch. In a typical navigation and anchor-light circuit, one maintained position powers the navigation and anchor lights together, while the other position powers the anchor light only. The independent top lamp can remain on a separate backlight circuit controlled by another switch or dimmer.
Independent Top Lamp and Dependent Bottom Lamp
- Independent top lamp: Powered separately through terminals 8 and 7, so it can join the rest of the panel backlighting.
- Dependent bottom lamp: Connected to the switched circuit to provide an illuminated status indication when the applicable output is energized.
- ON-OFF-ON switching: Maintained three-position action with two separate poles for controlling paired marine loads.
Switch body only: Pair this body with a compatible Carling Contura rocker actuator or cover, sold separately, to complete the switch.
VJD1-GCCB Specifications
- Manufacturer: Carling Technologies
- Series: V-Series sealed rocker switch
- Carling part number: VJD1-GCCB
- Circuit function: ON-OFF-ON, maintained
- Poles: DPDT (double pole, double throw)
- Electrical rating: 20A at 12V DC
- Terminals: 8 x 0.250-inch quick-connect tabs
- Lamps: Two red 12V LEDs
- Lamp arrangement: Independent top lamp; dependent bottom lamp
- Sealing: IP66/IP68 above-panel protection
- Included: Switch body only; rocker actuator/cover sold separately
VJD1-GCCB Wiring Diagrams

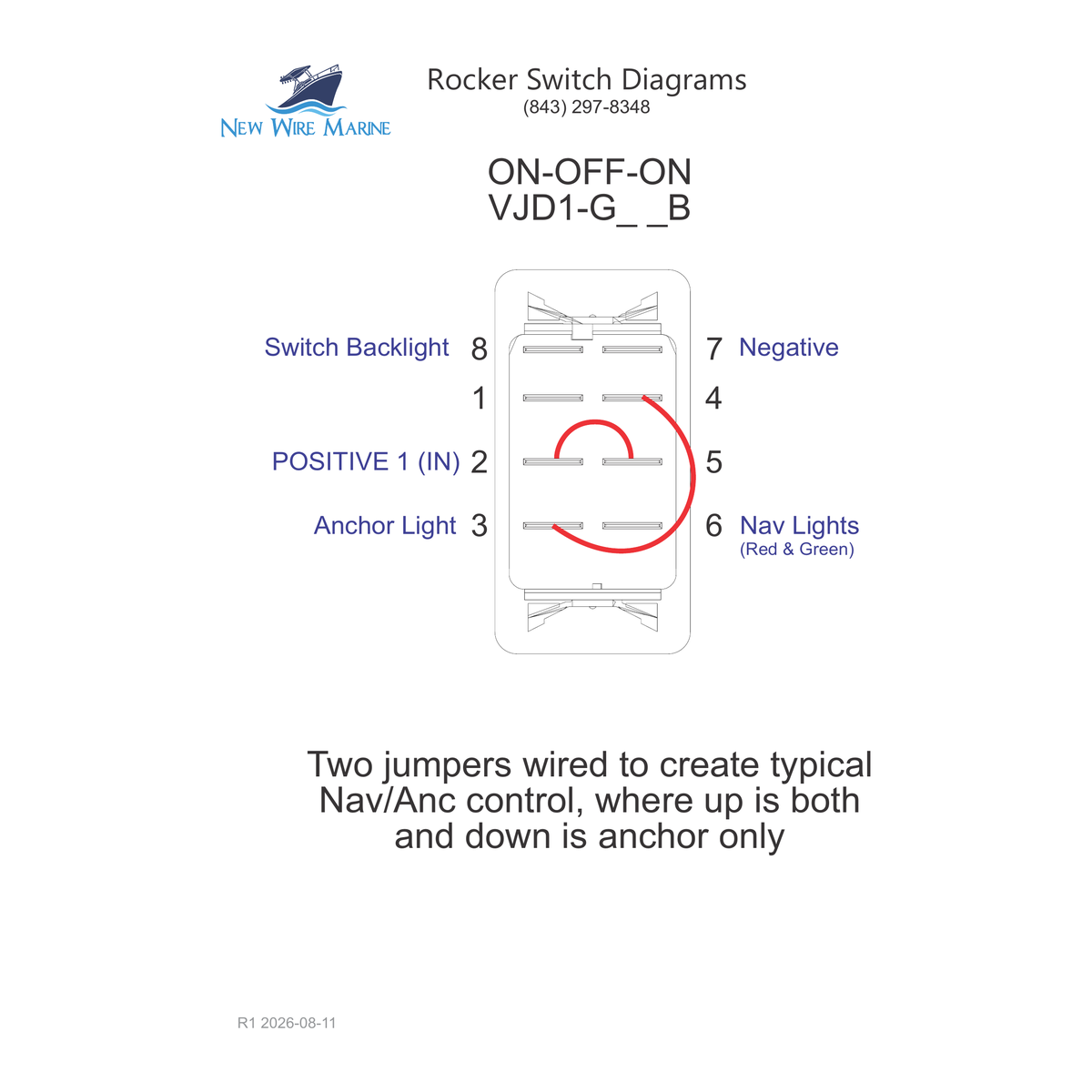

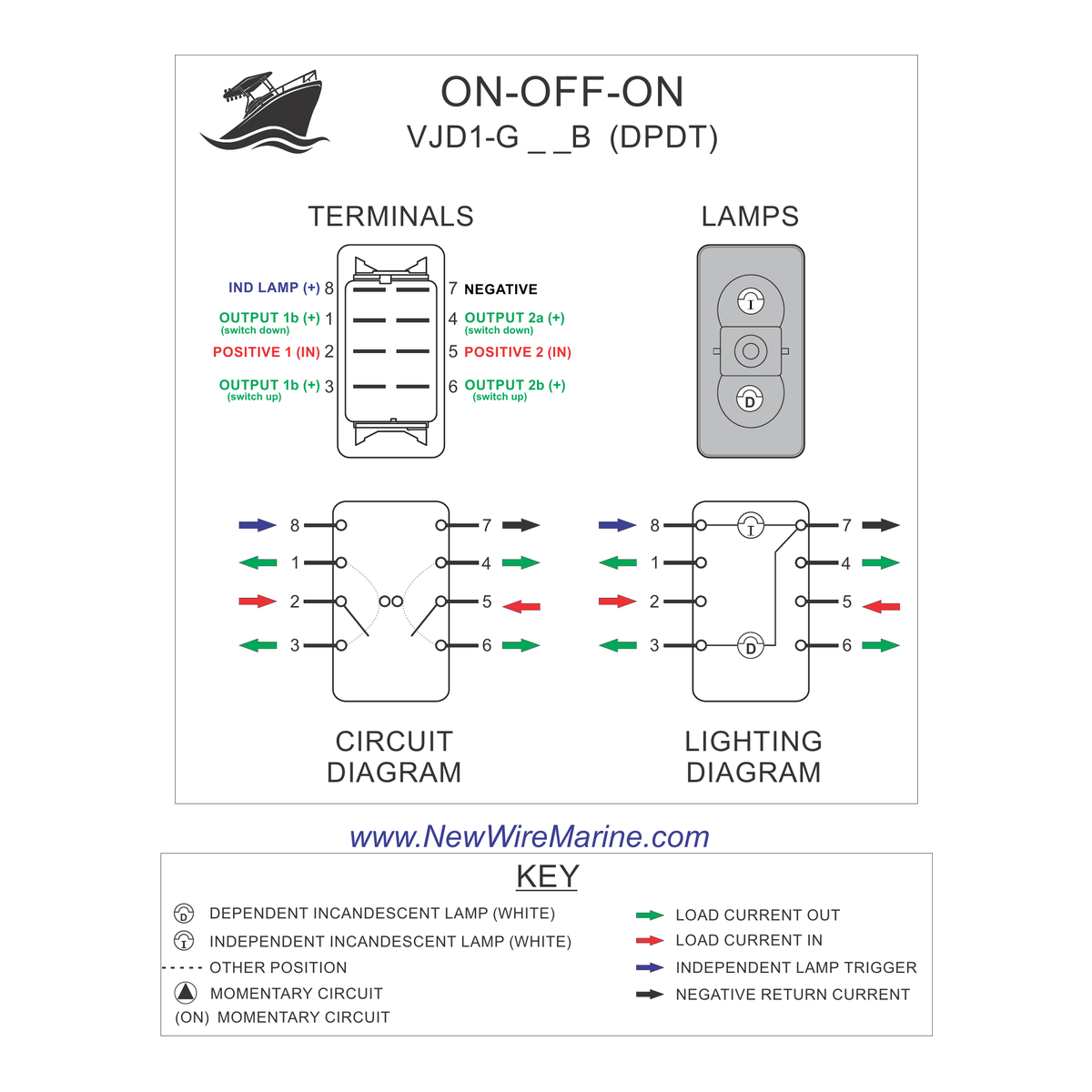

Use the terminal and lamp diagram to identify the eight connections and two lamp circuits. The NAV/ANC diagram shows the typical jumper arrangement for navigation lights in one position and anchor-only operation in the other.
